MarchF
Has eight magnification ratios, in the first focal plane (FFP) configuration rifle scope. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration.

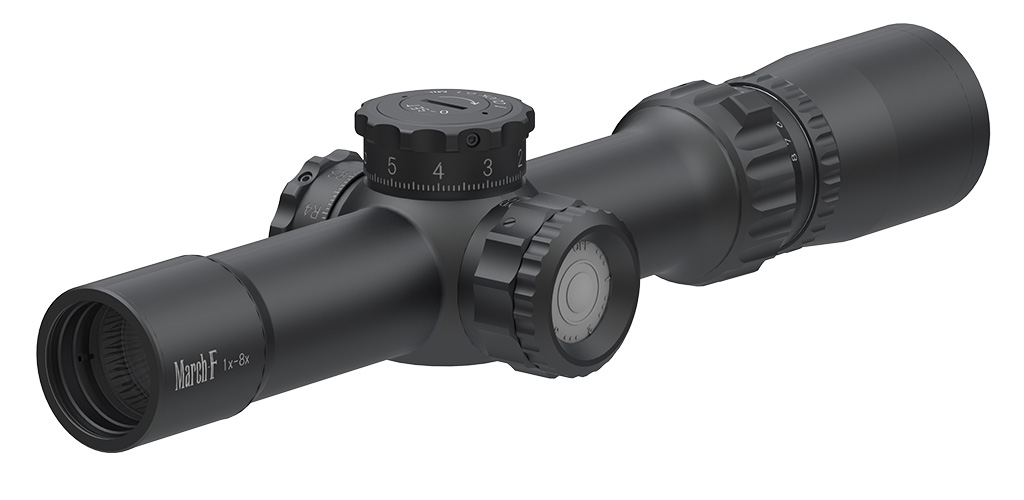

D8V24FIML

Tactical Model with Illumination Module

The standard and low illumination switch modules are available. Both modules provide four levels of the reticle glow (red) intensity, which can be cycled through by pressing the switch repeatedly. Both modules can be interchanged.
This function is very effective in the dusk or when aiming at a dark target.

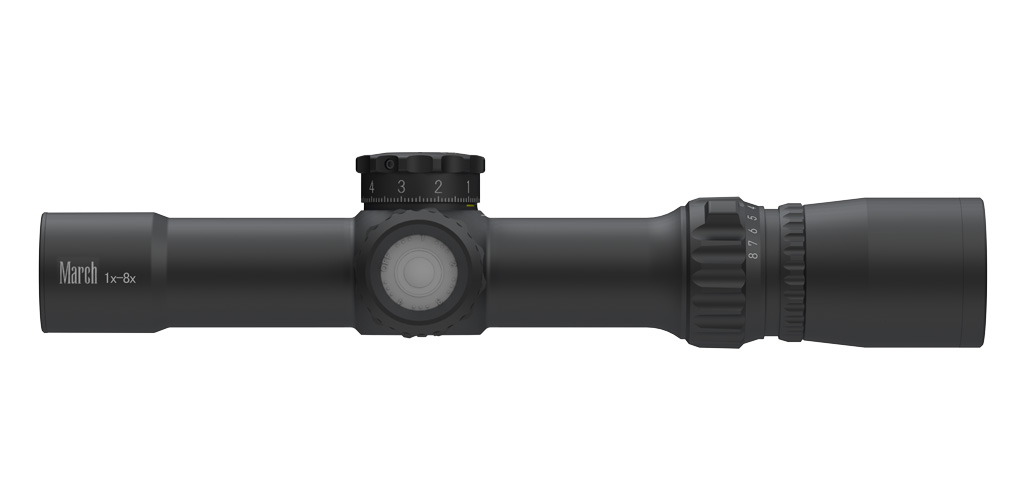

D8V24FIML

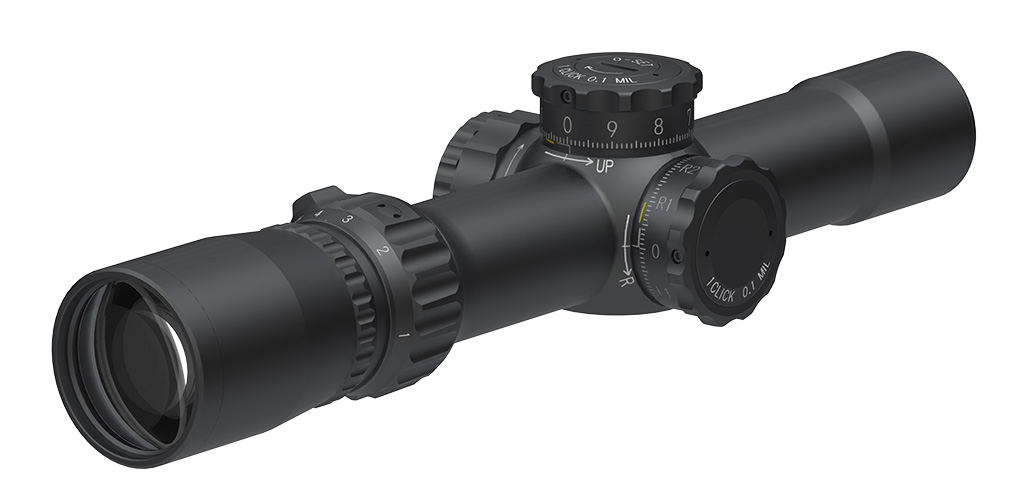

  • D8V24FIML
  • D8V24FIML
  • D8V24FIML
  • D8V24FIML

First Focal Plane Reticle Scope (FFP)

A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the ret icle scale will get thicker when magnification is increased.
The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.

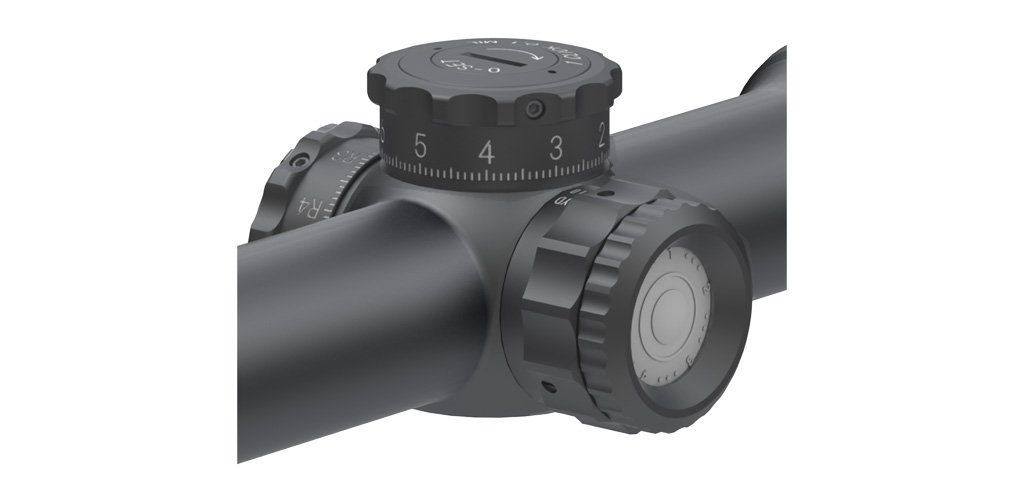

Dials

D8V24FIML

0.1 MIL Type

1 click adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
0-set on Elevation turret

Reticles

  • FMC-1

    6 MIL center circle with 1/4 MIL width and crosshairs with vertical and horizontal hashes.
    The crosshair width is 1/8 MIL in inside the 6 MIL circle, and 1/16 MIL in outside.
    These hashes are placed in 1 MIL increment between center-10MIL.

    D8V24FIML

    × CLOSE

  • FMC-2

    Tow center circle with 0.5 MIL width and crosshair with vertical and horizontal hashes.
    One of the circle of the diameter is 6 MIL, the other one is 25 MIL.
    The crosshair width is 1/6 MIL in inside the 6 MIL circle, and 1/16 MIL in outside.
    These hashes are placed in 1 MIL increment between center-10MIL.

    D8V24FIML

    × CLOSE

  • FMC-3

    D8V24FIML

    × CLOSE

Technical Data

Low High
Magnification 1x 8x
Effective Lens Diameter 24mm
Body Tube Diameter 30mm
Exit Pupil 6.6mm
(0.26inch)		 3.0mm
(0.12inch)
Field of View (real) degree 19.67° 2.46°
ft/100yd 104ft 12.9ft
m/100m 34.67m 4.3m
Eye Relief 74-102mm
(2.91-4.02inch)		 74-97mm
(2.91-3.82inch)
1 Click Adjustment 0.1MIL
Elevation Travel 56MIL
Windage Travel 56MIL
Focus Distance 10yd - infinity
Reticle FMC-1
FMC-2
FMC-3
In the box Flip Caps (Objective and Eyepiece)
Lens Cloth
Fast Lever
Scope Size A 256mm (10.08inch)
size B 129mm (5.08inch)
C 33mm (1.3inch)
D 41mm (1.61inch)
E 35mm (1.38inch)
F 92mm (3.7inch)
G 49mm (1.93inch)
H 42mm (1.65inch)
Weight 560g (19.75oz)
