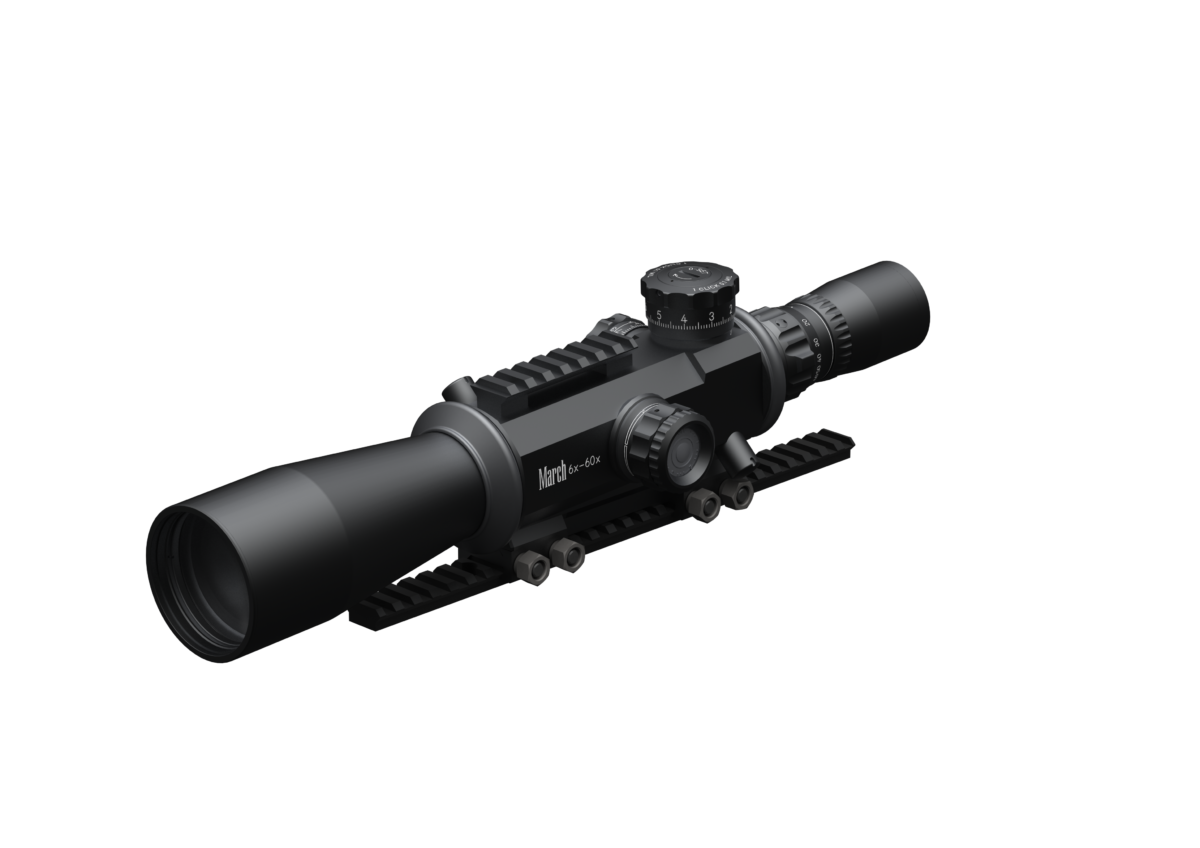

D60V56GFIML10
Tactical Model with Illumination Module
2021 NEW click option in 0.1MIL!
March "GENESIS" 6x-60x56mm with 114 Mil of total elevation travel without utilizing any external accessories.
The unique design of Genesis scopes (the scope itself inclines) allow the shooter to always see through the central part of the lens producing clarity, definition, and minimal chromatic aberration when extreme elevation is used even on 114 MIL.
This scope can be used from 20 meters up to 3 miles (4827m).
GENESIS employs "New High Master Lens System" and "Temperature Anti-Drift Lens System"
"New High Master Lens System"
The High Master Lens System has 2 Super ED lens elements within its new lens system.
By using Super ED lens elements, we can suppress chromatic aberration even more than with ED lenses
and thus produce a sharper image with greater contrast, while still having a strong scope.
"Temperature Anti-Drift Lens System"
In the latest optical systems, a new lens material has been developed to accommodate changes
in environmental temperature by altering the refractive index of the lenses.
This new lens material has been adopted for the new High Master optics to create a more stable lens system
that naturally adapts to changes in temperature to maintain focus and clarity over a wide range of conditions.
Because of the supreme lens systems Genesis scope assembles and also because the unique design of Genesis scope allows the shooter to always see through the central part of the lens, Genesis March scopes have the highest image quality among all our scopes, not to mention the largest elevation travel amount.
Dials
-
-
0.1 MIL Type
114 Mil of total elevation travel with Zero-set feature (100 Mil up, 14 Mil down)
40 Mil of total windage travel (20 Mil left and 20 Mil right)
10 Mil per turn on each turret. 0.1 Mil clicks
Technical Data
Low | High | ||
---|---|---|---|
Magnification | 6x | 60x | |
Effective Lens Diameter | 56mm | ||
Body Tube Diameter | -- | ||
Exit Pupil | 3.3mm (0.13inch) |
0.93mm (0.04inch) |
|
Field of View (real) | degree | 4.16° | 0.416° |
ft/100yd | 21.8ft | 2.18ft | |
m/100m | 7.26m | 0.726m | |
Eye Relief | 67-82mm (2.64-3.23inch) |
63-82.5mm (2.48-3.25inch) |
|
1 Click Adjustment | 0.1MIL | ||
Elevation Travel | 114MIL | ||
Windage Travel | 40MIL | ||
Focus Distance | 20m | ||
Reticle | FML-MT FML-TR1 FML-3 |
||
In the box | Flip Caps (Objective and Eyepiece) MD disk Sunshade Lens Cloth Fast Lever 6 level illumination module Eyepiece rubber Mount Mount spacer |
||
Scope Size | A | 400mm (15.75inch) | |
![]() |
B | 68mm (2.68inch) | |
C | 64mm (2.52inch) | ||
D | 41mm (1.61inch) | ||
E | 132mm (5.20inch) | ||
F | 95mm (3.54inch) | ||
G | 173mm (6.81inch) | ||
H | 2.50° | ||
Weight | 1,480g (52.21oz) |
