The 5x-32x52mm and 10x-60x52mm scopes were designed for serious long-range shooting. These scopes feature a 10-yards minimum focus distance, making it also suitable for short range Field Target air rifle competition. These scopes incorporate high quality ED lenses, providing superior image resolution.
March

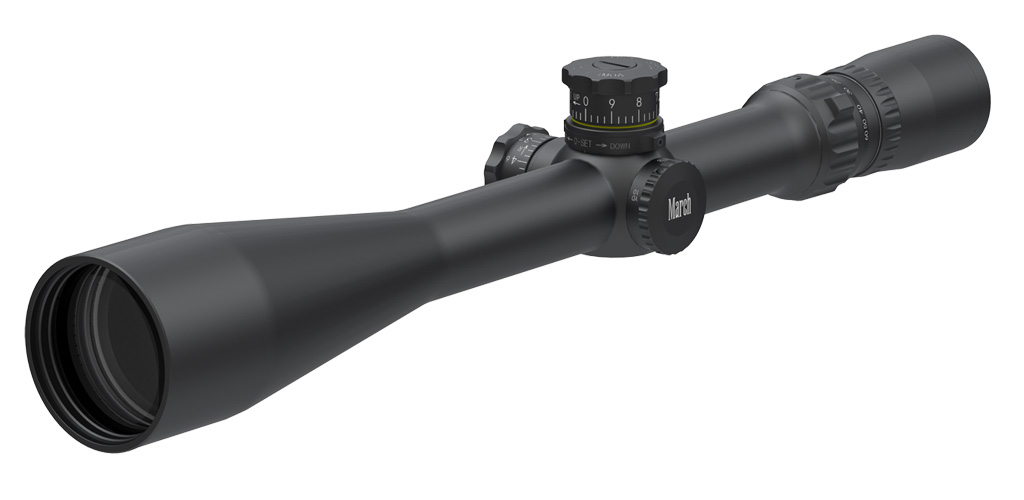

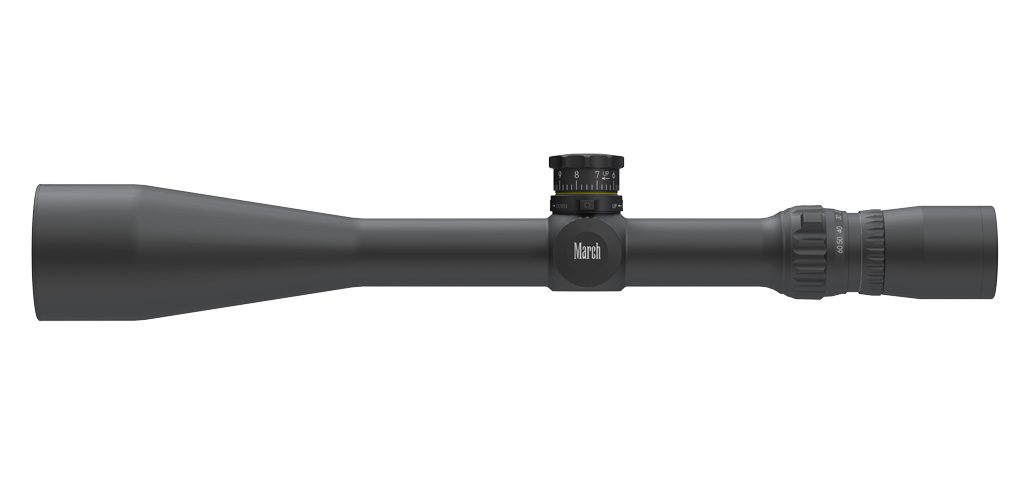

D60V52T
Tactical Model (Non illuminated)
Popular scope for benchrest shooting. Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.
Dials
-
-
MOA Type
One turn of both adjustment dials is 10MOA and one click is 1/8MOA.
Elevation axis has a total adjustment range of 60MOA.
Windage axis has a total adjustment range of 40MOA.
1/8MOA Adj.dials with 0-Set
Reticles
-
-
Dot Reticle
Conventional wire crosshairs reticle with center dot.
Dot size (MOA): 1/8, 3/32, 1/16
-
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 10x | 60x | |
| Effective Lens Diameter | 52mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | -- |
0.86mm (0.03inch) |
|
| Field of View (real) | degree | 2.0° | 0.333° |
| ft/100yd | 10.5ft | 1.7ft | |
| m/100m | 3.49m | 0.58m | |
| Eye Relief | 88-99mm (3.46-3.9inch) |
95-101mm (3.74-3.98inch) |
|
| 1 Click Adjustment | 1/8MOA | ||
| Elevation Travel | 60MOA | ||
| Windage Travel | 40MOA | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | CH 1/8dot 3/32dot 1/16dot Di-plex |
||
| In the box | Flip Caps (Objective and Eyepiece) MD disk Sunshade Lens Cloth Fast Lever Hex Wrench |
||
| Scope Size | A | 418mm (16.46inch) | |
|
B | 173mm (6.81inch) | |
| C | 60mm (2.36inch) | ||
| D | 41mm (1.61inch) | ||
| E | 142mm (5.59inch) | ||
| F | 103mm (4.06inch) | ||
| G | 79mm (3.11inch) | ||
| H | 57mm (2.24inch) | ||
| Weight | 700g (24.70oz) | ||
