These compact scopes are able to encompass the performance of two or three zoom scopes in one. These scopes provide the highest magnification ratio in any rifle scope.
March Compact
- 1.5x-15x42mm
- D15V42IML
- D15V42TIML
- D15V42TI
- 1x-10x24mm
- D10V24TIML
- D10V24TML
- D10V24TI
- D10V24TM
- D10V24T
- D10V24M
- D10V24
- 1x-4.5x24mm
- D4.5V24TM (Non illuminated)
- 1x-4x24mm
- D4V24IML
- 2.5x-25x42mm
- D25V42TIML
- D25V42TML
- D25V42TI
- D25V42TM
- D25V42T
- D25V42M
- D25V42
- 2.5x-25x52mm
- D25V52TML
- D25V52TIML
- D25V52TI
- D25V52TM
- D25V52T

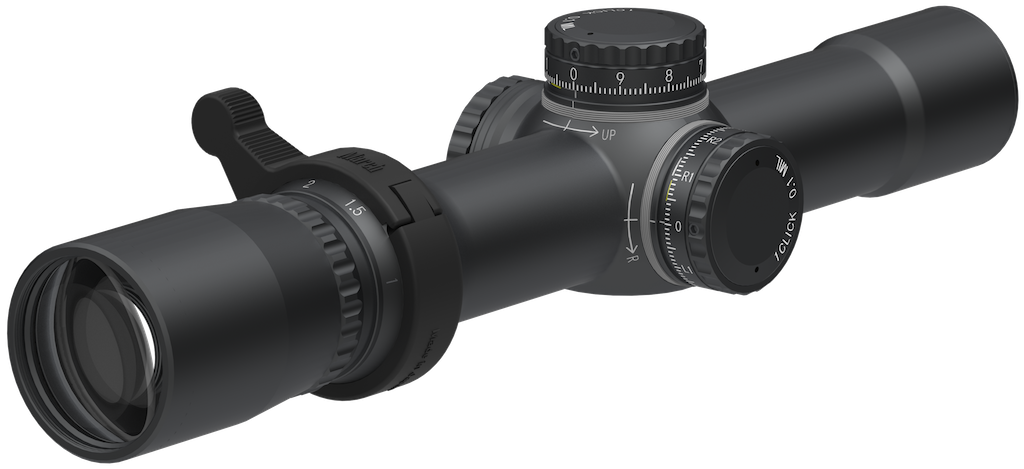

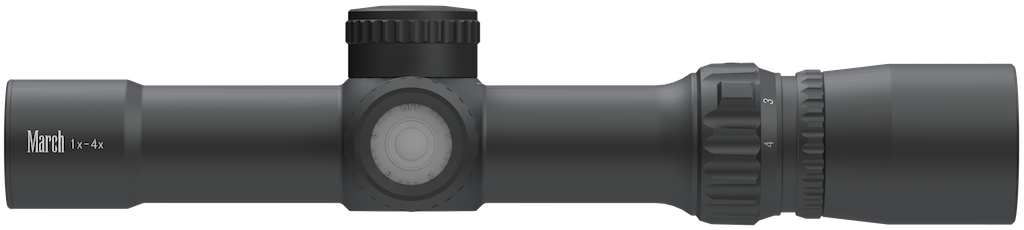

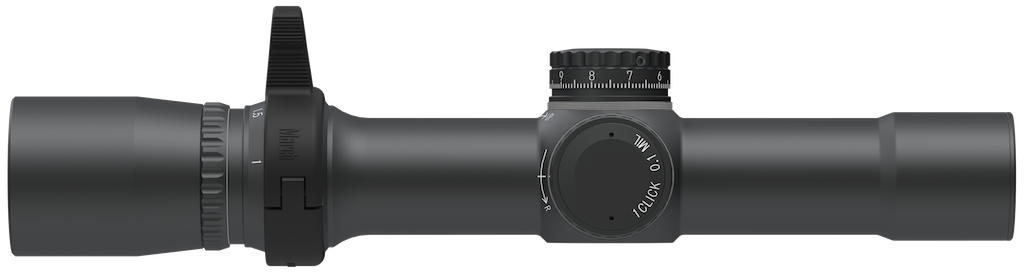

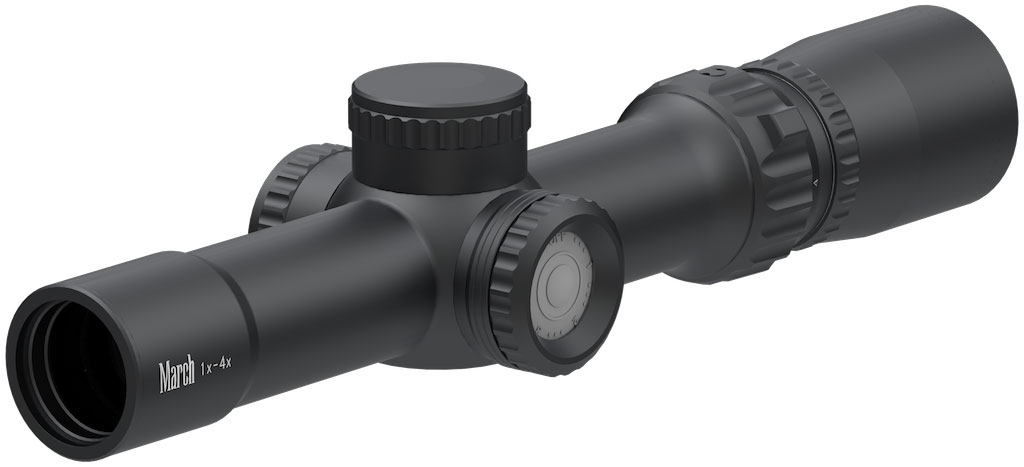

D4V24IML
Normal Model (Illuminated)
March 1x-4x24mm are suitable for short and middle range hunting with simple features. The 17.8 mm exit pupil at 1x enable the user to concentrate faster on the target. This scope is an excellent choice for short and middle range quarry, including moving targets. It is suitable for the harshest of environments. Compact scope weighing only 490g (17.28oz).
The FD-1 reticle has a bright dot even in daytime on the center of 3-Post with four power setting illumination module.

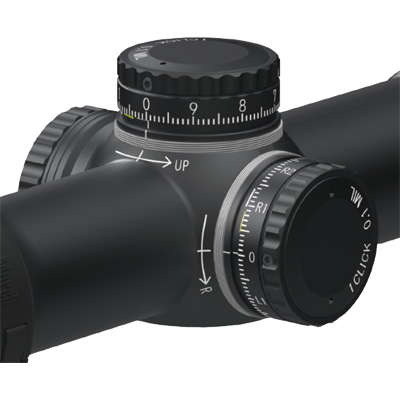

Dials
-
-
0.1 MIL Type
1 Click Adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 1x | 4x | |
| Effective Lens Diameter | 24mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | 17.8mm (0.7inch) |
6.0mm (0.24inch) |
|
| Field of View (real) | degree | 19.0° | 4.7° |
| ft/100yd | 100.4ft | 24.9ft | |
| m/100m | 33.47m | 8.20m | |
| Eye Relief | 64-94mm (2.52-3.7inch) |
61-94mm (2.4-3.7inch) |
|
| 1 Click Adjustment | 0.1MIL | ||
| Elevation Travel | 56MIL | ||
| Windage Travel | 56MIL | ||
| Focus Distance | 100yd | ||

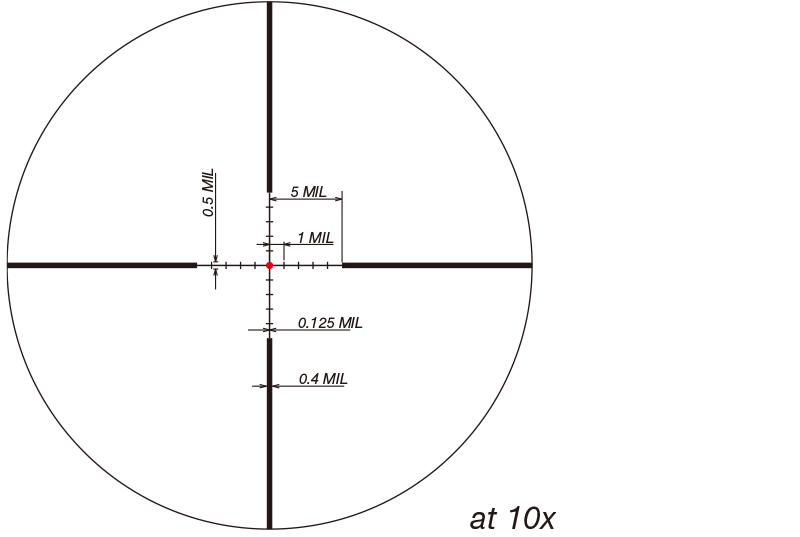

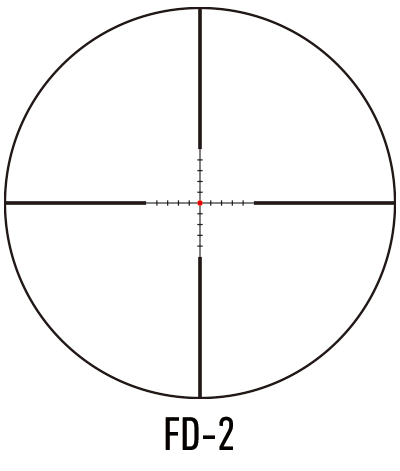

| Reticle | FD-1 FD-2 |
||
| In the box | Flip Caps (Objective and Eyepiece) Fast Lever Lens Cloth Hex wrench |
||
| Scope Size | A | 258mm (10.16inch) | |
|
B | 129mm (5.08inch) | |
| C | 33mm (1.3inch) | ||
| D | 41mm (1.61inch) | ||
| E | 35mm (1.38inch) | ||
| F | 94mm (3.7inch) | ||
| G | 49mm (1.93inch) | ||
| H | 42mm (1.65inch) | ||
| Weight | 490g (17.28oz) | ||
