MarchFX
Has eight magnification ratios, including the highest magnification ratio in the first focal plane (FFP) configuration rifle scope made to date. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration. This scope was designed to eliminate optical aberration without compromise, utilizing high-end extra-low dispersion (ED) lenses.

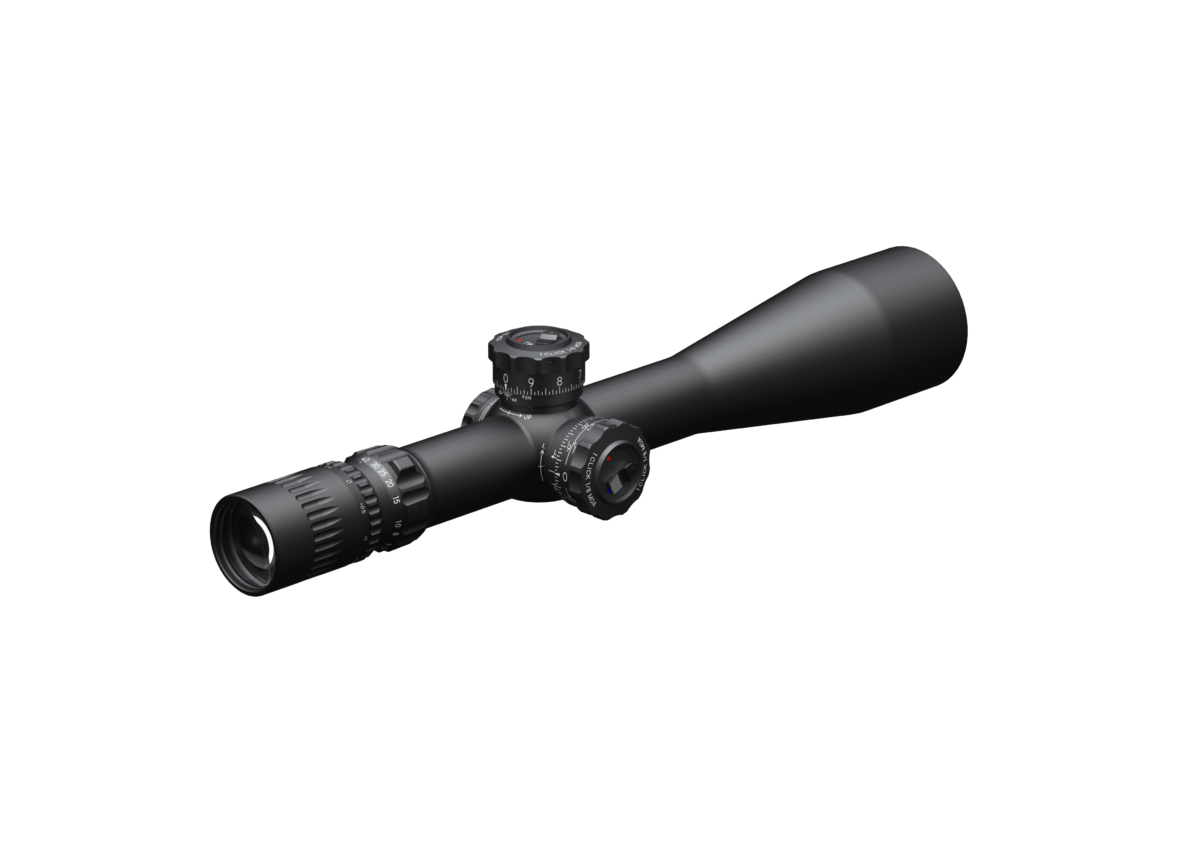

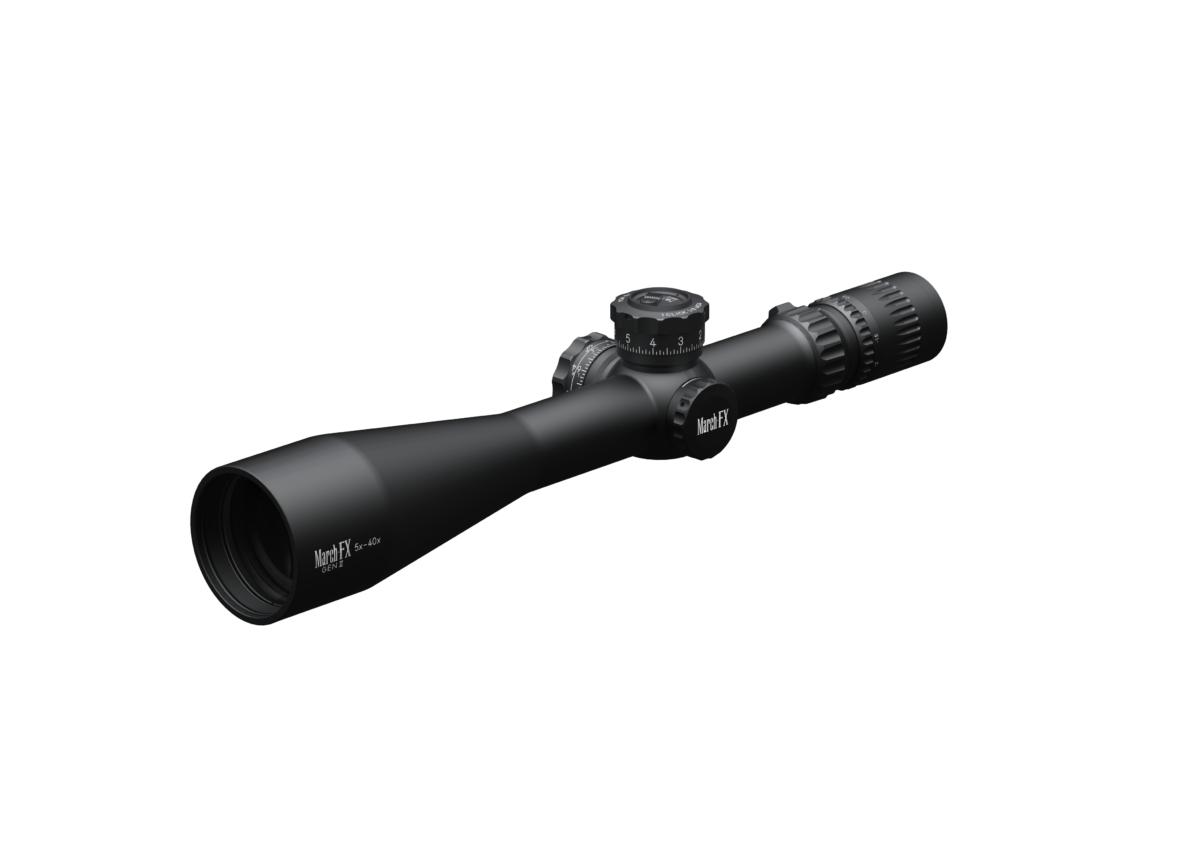

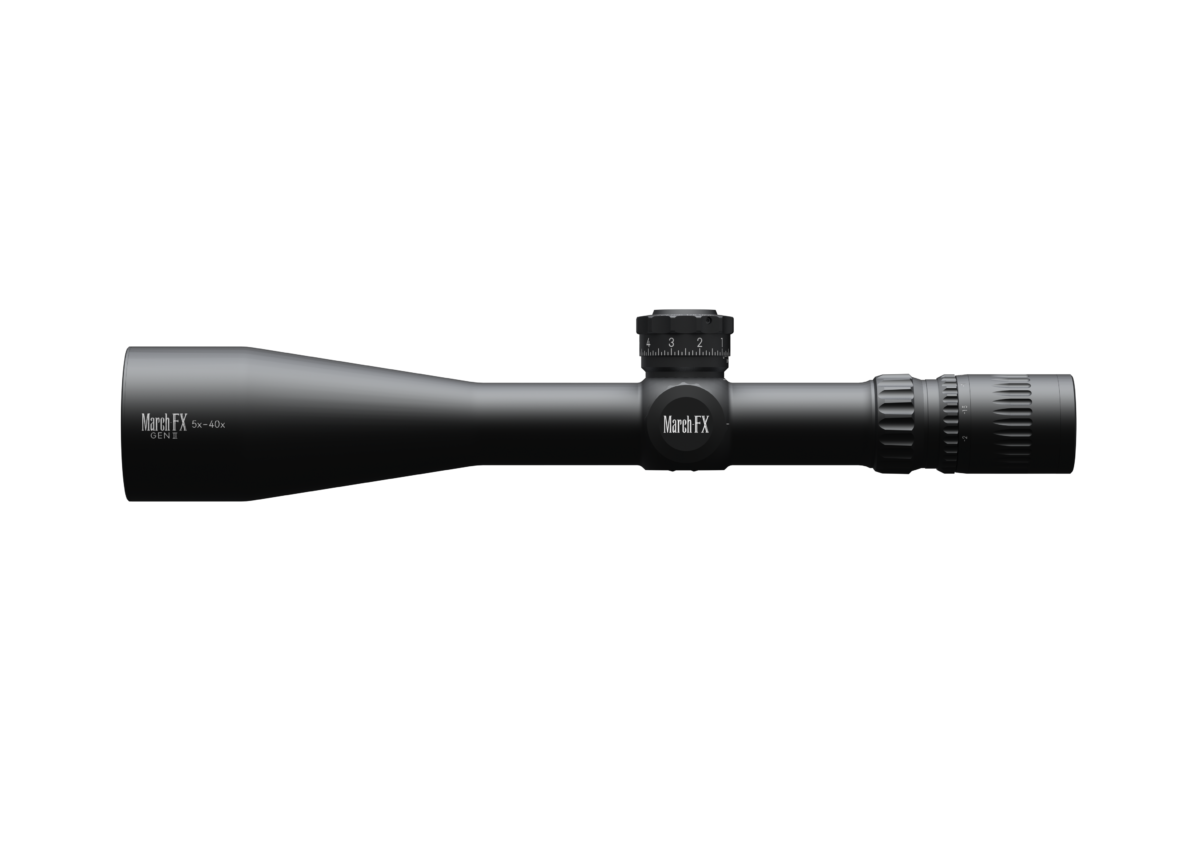

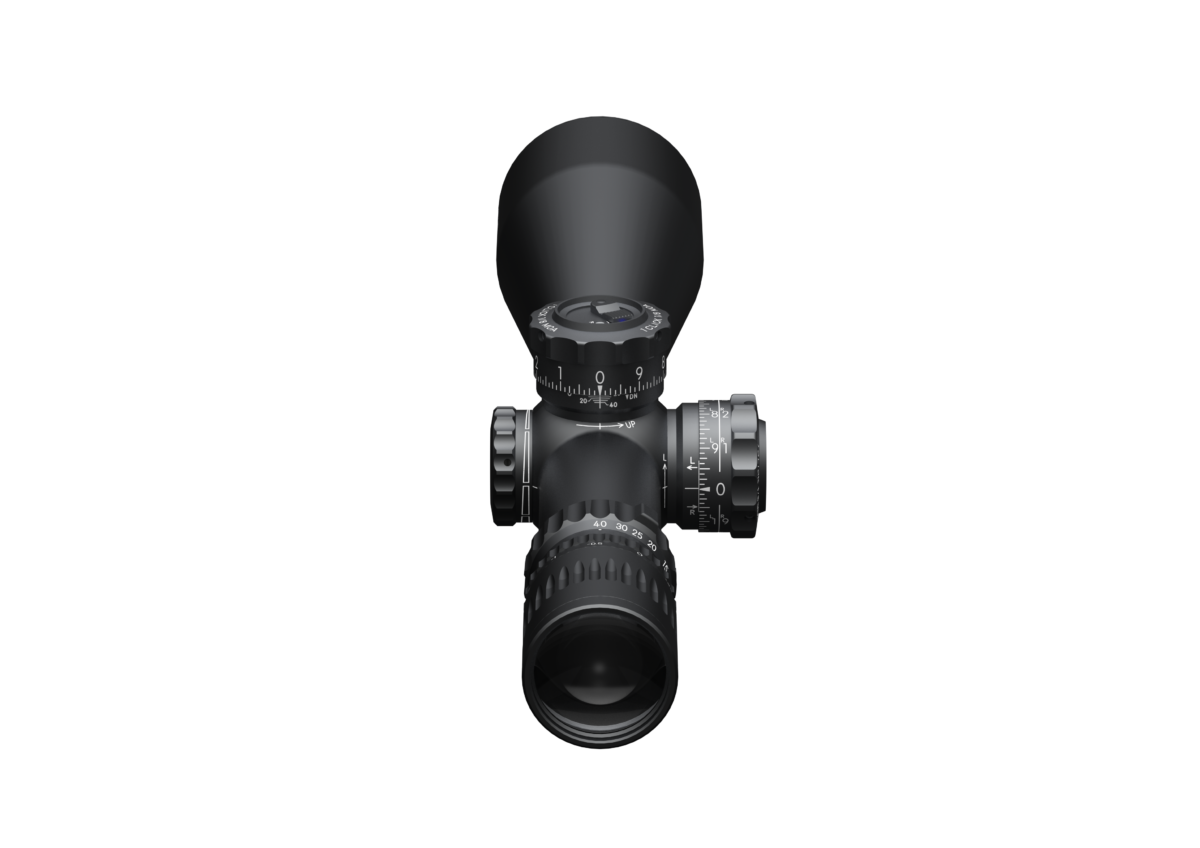

D40V56FMA8-G2

Tactical Model

New for 2021! 5-40x56 Genll
Generation ll of a hot seller and all time favorite 5-40x56 Scope with precise 1/8MOA click adjustment.
5-40x56Genll is an ultimate scope for serious competition shooters, enthusiasts and hunters
who demand the utmost in optical/mechanical performance.

Added features in 5-40x56 Genll are;
- Lockable Elevation and Windage turrets
- Fast focus eyepiece

* We will start receiving orders from April 1st, 2021.

D40V56FMA8-G2
  • D40V56FMA8-G2
  • D40V56FMA8-G2
  • D40V56FMA8-G2
  • D40V56FMA8-G2

First Focal Plane Reticle Scope (FFP)

A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the ret icle scale will get thicker when magnification is increased.
The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.

Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.

Dials

D40V56FMA8-G2

1/8 MOA Type

One turn of both adjustment dials is 10MOA and one click value is 1/8MOA.
Reticle: FMA-2 (non-illuminated)

1/8MOA Adj.dials with 0-Set

Reticles

  • FMA-2 (non-illuminated)

    1/8 MOA floating center dot and 1/16 MOA crosshairs with vertical and horizontal hashes.
    These hashes are placed in 1 MOA increment.
    Non-illuminated model only.

    D40V56FMA8-G2

    × CLOSE

Technical Data

Low High
Magnification 5x 40x
Effective Lens Diameter 56mm
Body Tube Diameter 34mm
Exit Pupil -- 1.4mm
(0.06inch)
Field of View (real) degree 4.0° 0.5°
ft/100yd 21.0ft 2.6ft
m/100m 6.98m 0.87m
Eye Relief 96-100mm
(3.78-3.94inch)		 92-98mm
(3.62-3.86inch)
1 Click Adjustment 1/8MOA
Elevation Travel 76MOA
Windage Travel 38MOA
Focus Distance 10yd - infinity
Reticle FMA-2
In the box Flip Caps (Objective and Eyepiece)
Sunshade
Lens Cloth
Fast lever
MD disk
Scope Size A 387mm (15.24inch)
size B 155mm (6.1inch)
C 64mm (2.52inch)
D 41mm (1.61inch)
E 144mm (5.67inch)
F 88mm (3.46inch)
G 66mm (2.6inch)
H 52mm (2.05inch)
Weight 915g (32.27oz)
