D40V56FIML10-G2
Tactical Model with Illumination Module
New for 2021! 5-40x56 Genll
Generation ll of a hot seller and all time favorite 5-40x56 Scope with 0.1MIL click adjustment.
5-40x56Genll is an ultimate scope for serious competition shooters, enthusiasts and hunters
who demand the utmost in optical/mechanical performance.
Added features in 5-40x56 Genll are;
- Lockable Elevation and Windage turrets
- Fast focus eyepiece
- 6 level illumination module
* We will start receiving orders from April 1st, 2021.
First Focal Plane Reticle Scope (FFP)
A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the ret icle scale will get thicker when magnification is increased.The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.
Dials
-
-
0.1 MIL Type
One turn of both adjustment dials is 10MIL and one click value is 0.1MIL.
Reticle: FML-1, FML-PDKI
0.1MIL Adj.dials with 0-Set
Reticles
-
FML-1 (illuminated)
0.05 MIL floating center dot and 0.04 MIL crosshairs with vertical and horizontal hashes. These hashes are placed in 0.5 MIL increment.
If you choose a non-illuminated model, this reticle will have a 0.05 MIL floating center dot and 0.02 MIL crosshairs.
-

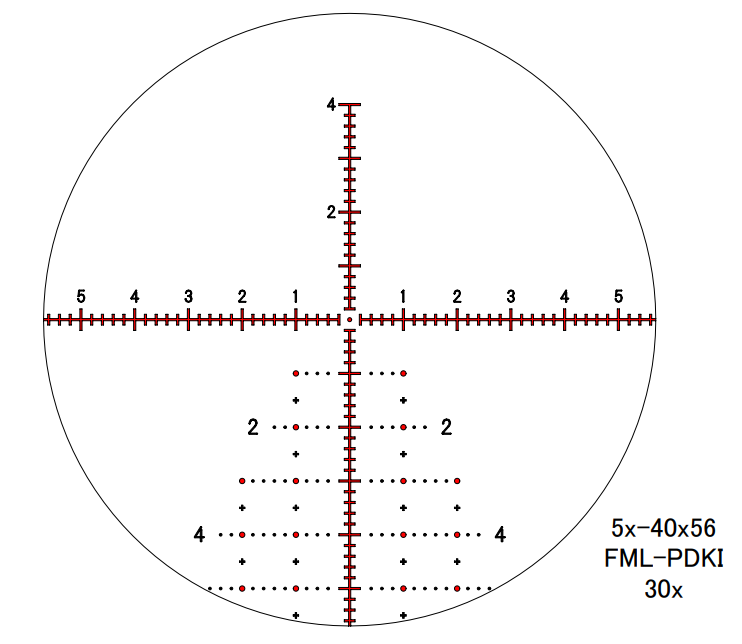

FML-PDKI (illuminated)
Horizontal line and vertical line are both 0.04MIL thick with a center 0.075MIl dot.
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 5x | 40x | |
| Effective Lens Diameter | 56mm | ||
| Body Tube Diameter | 34mm | ||
| Exit Pupil | -- |
1.4mm (0.06inch) |
|
| Field of View (real) | degree | 4.0° | 0.5° |
| ft/100yd | 21.0ft | 2.6ft | |
| m/100m | 6.98m | 0.87m | |
| Eye Relief | 96-100mm (3.78-3.94inch) |
92-98mm (3.62-3.86inch) |
|
| 1 Click Adjustment | 0.1MIL | ||
| Elevation Travel | 22MIL | ||
| Windage Travel | 11MIL | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | FML-1 FML-PDKI |
||
| In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast lever MD disk |
||
| Scope Size | A | 387mm (15.24inch) | |
|
B | 155mm (6.1inch) | |
| C | 64mm (2.52inch) | ||
| D | 41mm (1.61inch) | ||
| E | 144mm (5.67inch) | ||
| F | 88mm (3.46inch) | ||
| G | 66mm (2.6inch) | ||
| H | 52mm (2.05inch) | ||
| Weight | 950g (33.5oz) | ||
