MarchFX
Has eight magnification ratios, including the highest magnification ratio in the first focal plane (FFP) configuration rifle scope made to date. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration. This scope was designed to eliminate optical aberration without compromise, utilizing high-end extra-low dispersion (ED) lenses.

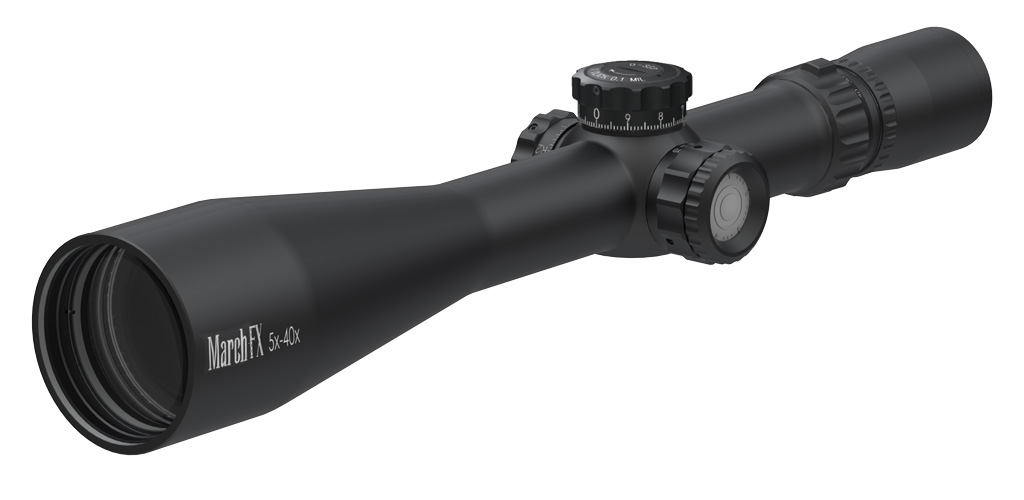

D40V56FIML10

Tactical Model with Illumination Module

The standard and low illumination switch modules are available. Both modules provide four levels of the reticle glow (red) intensity, which can be cycled through by pressing the switch repeatedly. Both modules can be interchanged.
This function is very effective in the dusk or when aiming at a dark target.

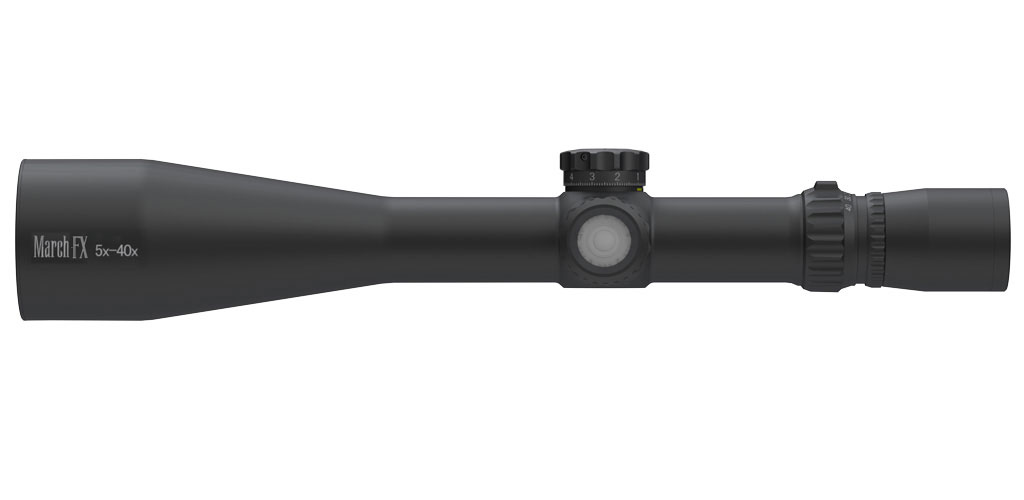

D40V56FIML10
  • D40V56FIML10
  • D40V56FIML10
  • D40V56FIML10
  • D40V56FIML10

First Focal Plane Reticle Scope (FFP)

A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the ret icle scale will get thicker when magnification is increased.
The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.

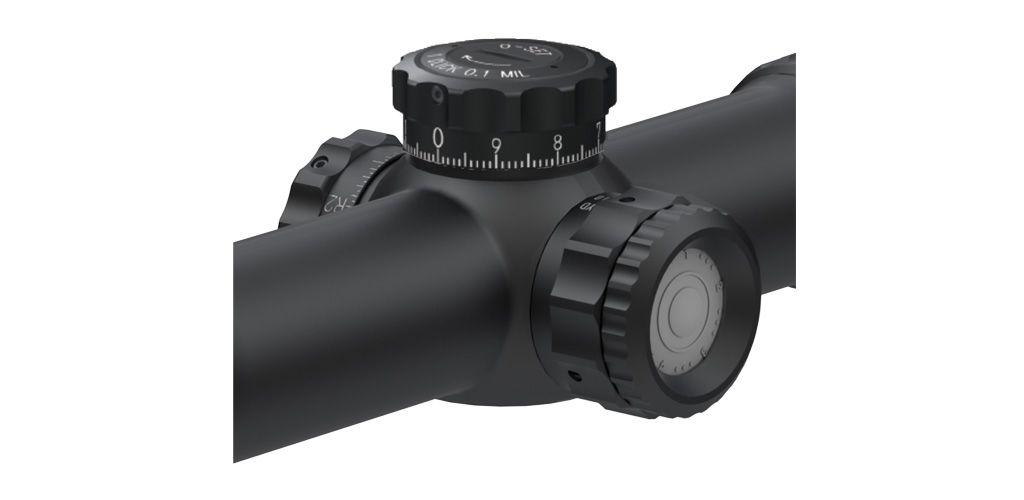

Dials

D40V56FIML10

0.1 MIL Type

One turn of both adjustment dials is 10MIL and one click value is 0.1MIL.
Reticle: FML-1

0.1MIL Adj.dials with 0-Set

Reticles

  • FML-1

    0.05 MIL floating center dot and 0.04 MIL crosshairs with vertical and horizontal hashes. These hashes are placed in 0.5 MIL increment.
    If you choose a non-illuminated model, this reticle will have a 0.05 MIL floating center dot and 0.02 MIL crosshairs.

    D40V56FIML10

    × CLOSE

Technical Data

Low High
Magnification 5x 40x
Effective Lens Diameter 56mm
Body Tube Diameter 34mm
Exit Pupil -- 1.4mm
(0.06inch)
Field of View (real) degree 4.0° 0.5°
ft/100yd 21.0ft 2.6ft
m/100m 6.98m 0.87m
Eye Relief 96-100mm
(3.78-3.94inch)		 92-98mm
(3.62-3.86inch)
1 Click Adjustment 0.1MIL
Elevation Travel 22MIL
Windage Travel 11MIL
Focus Distance 10yd - infinity
Reticle FML-1
In the box Flip Caps (Objective and Eyepiece)
Sunshade
Lens Cloth
MD disk
Fast Lever
Scope Size A 387mm (15.24inch)
size B 155mm (6.1inch)
C 64mm (2.52inch)
D 41mm (1.61inch)
E 144mm (5.67inch)
F 88mm (3.46inch)
G 66mm (2.6inch)
H 52mm (2.05inch)
Weight 890g (31.39oz)
