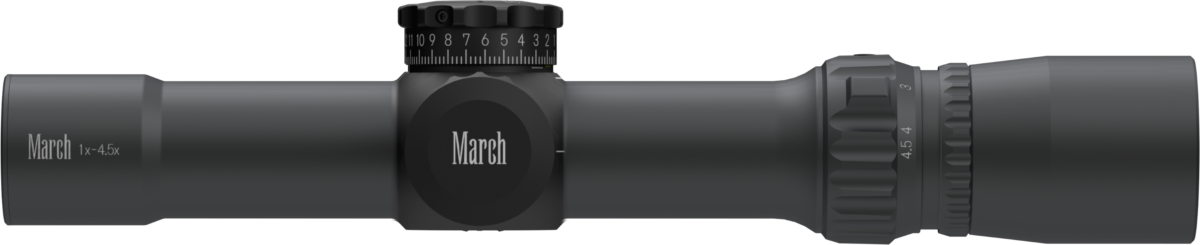

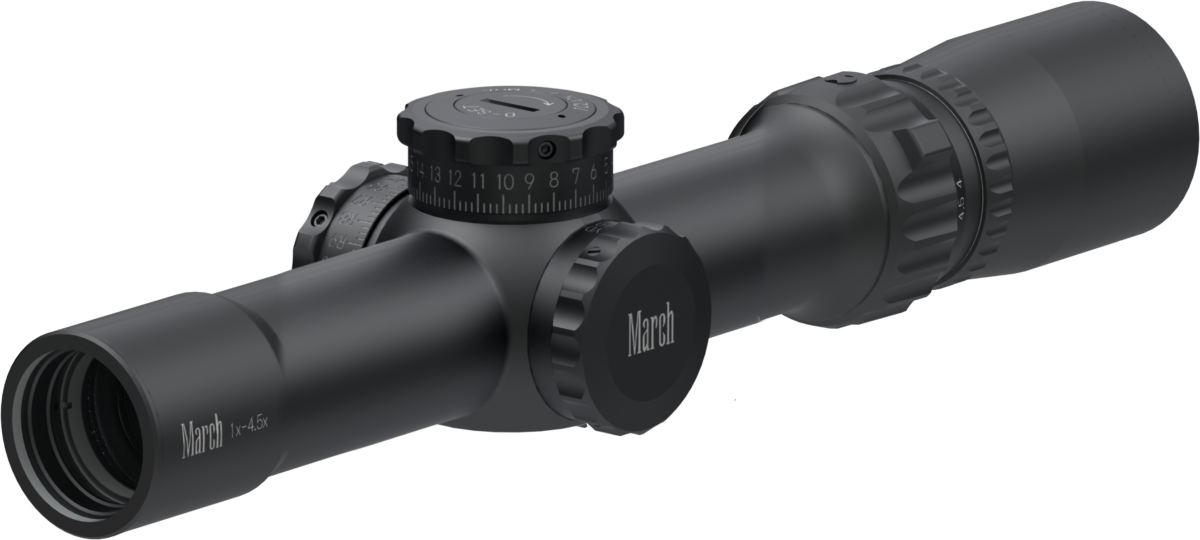

D4.5V24TM (Non illuminated)
Tactical Model
Exit pupil 16mm at 1x. 1x-4.5x24mm scope designed for Service Rifle competition and tactical applications. This scope should set the standard for AR-friendly 4.5x optics. This compact (500g (17.64oz)) variable-power scope offers ideal eye relief for AR-type rifles, along with plenty of windage and elevation travel. Side focus dial lets you see the target clearly from 10 yards to Infinity at all power settings.

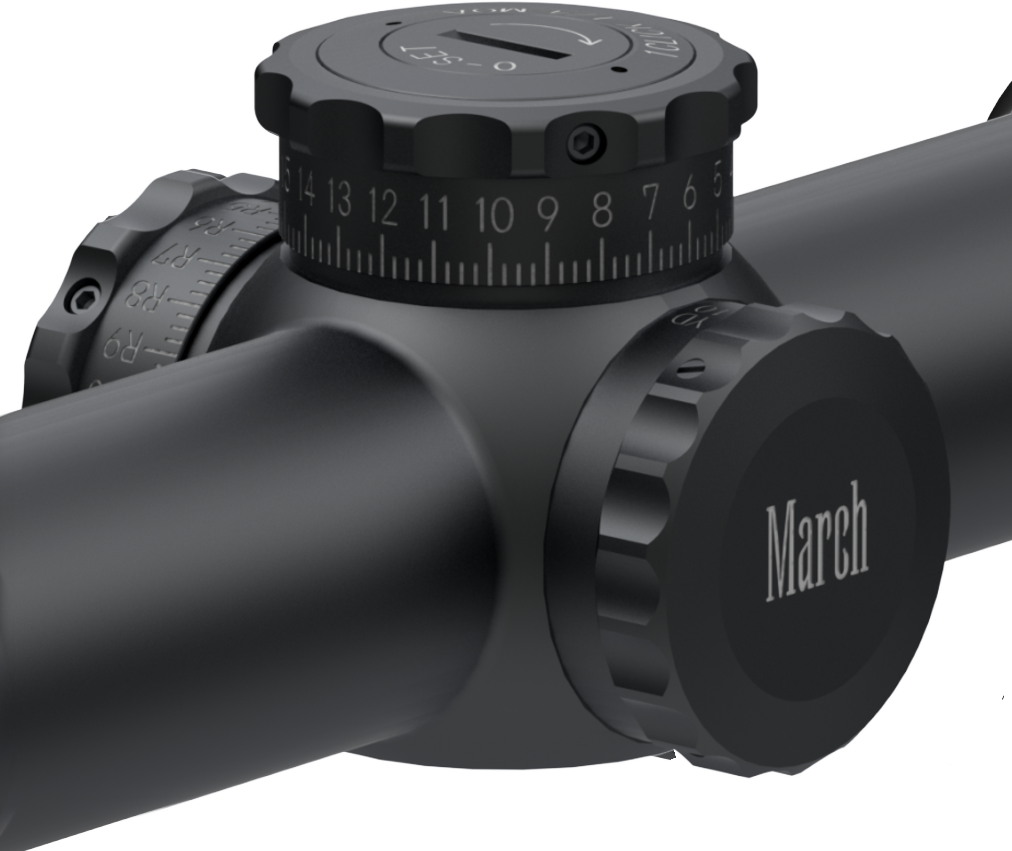

Dials
-
-
1/4 MOA Type
1 Click Adjustment: 1/4 MOA (0.26in at 100yds)
25 MOA turret revolution (10.47in at 100yds)
Elevation Travel: 200 MOA
Windage Travel: 200 MOA
Reticles
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 1x | 4.5x | |
| Effective Lens Diameter | 24mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | 16.0mm (0.63inch) |
5.33mm (0.21inch) |
|
| Field of View (real) | degree | 19.0° | 4.22° |
| ft/100yd | 100.4ft | 22.1ft | |
| m/100m | 33.47m | 7.37m | |
| Eye Relief | 73-103mm (2.87-4.06inch) |
73-103mm (2.87-4.06inch) |
|
| 1 Click Adjustment | 1/4MOA | ||
| Elevation Travel | 200MOA | ||
| Windage Travel | 200MOA | ||
| Focus Distance | 10yd - infinity | ||

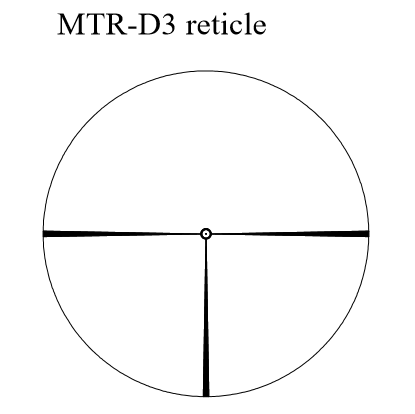

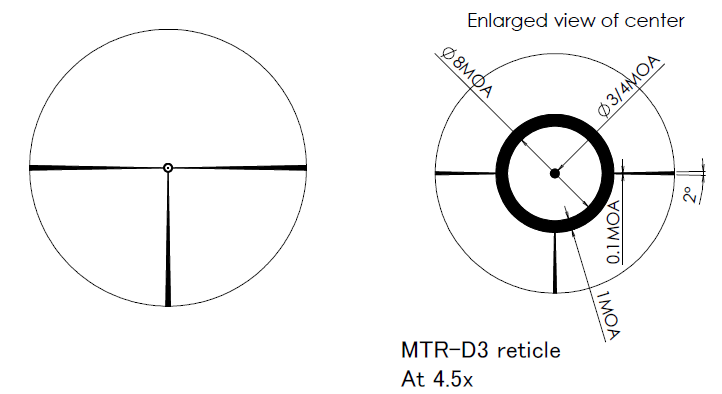

| Reticle | MTR-D2 (non-illuminated only) MTR-5 (non-illuminated only) MTR-D3 (non-illuminated only) |
||
| In the box | Flip Caps (Objective and Eyepiece) Lens Cloth Fast Lever Hex wrench |
||

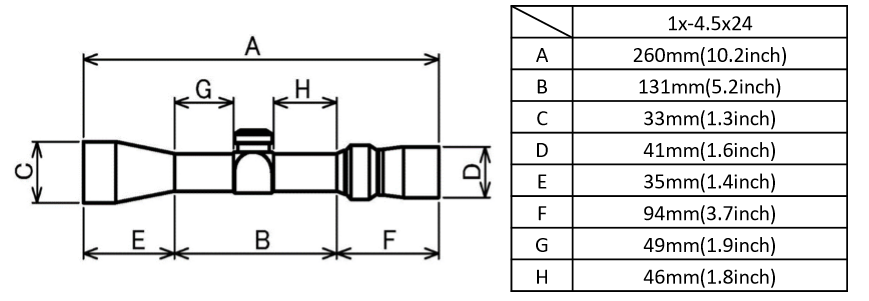

| Scope Size | A | 260mm (10.24inch) | |
|
B | 131mm (5.16inch) | |
| C | 33mm (1.3inch) | ||
| D | 41mm (1.61inch) | ||
| E | 35mm (1.38inch) | ||
| F | 94mm (3.7inch) | ||
| G | 49mm (1.93inch) | ||
| H | 46mm (1.81inch) | ||
| Weight | 500g (17.64oz) | ||
