D28HV52WFIML

Has eight magnification ratios, including the highest magnification ratio in the first focal plane (FFP) configuration rifle scope made to date. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration. This scope was designed to eliminate optical aberration without compromise, utilizing high-end extra-low dispersion (ED) lenses.

March-FX

Tactical Model with Illumination module

2020-21 NEW! March-FX "Wide Angle" 4.5-28x52mm Riflescope

"Temperature Anti-Drift Lens System"
In the latest optical systems, a new lens material has been developed to accommodate changes
in environmental temperature by altering the refractive index of the lenses.
This new lens material has been adopted to create a more stable lens system
that naturally adapts to changes in temperature to maintain focus and clarity over a wide range of conditions.

"Wide Angle Eyepiece"
25 Degree Wide Angle Eyepiece will enhance FOV throughout the 6.2 magnification range.
Compared with our standard scopes with 20 degree, this is wider by 25%.

"Super ED lenses"
By incorporating Super ED lenses (High Master lens system), we are able to reduce the chromatic aberration.

Please check this article for more detailed information!
https://marchscopes.com/news/7170/

Leaflet of this product :
https://marchscopes.com/wp-content/uploads/2021/05/D28HV52WF_leaflet_20210317.pdf

This scope was developed with practical precision shooting competitors in mind,
but ease of use and compact configuration make it equally at home on nearly any shooting platform.
The short length (318mm; 12.5”) and light weight (845g; 29.8oz) of the March-FX 4.5x-28x52mm is exceptional.

"Fast focus eyepiece"
The diopter adjustment mechanism has been improved so you can adjust the eyepiece to your eye faster than ever before.

Dials

0.1 MIL Type 1 Click Adjustment : 0.1MIL (1cm @100m) 10 MIL turret revolution (100cm @100m) 0-set on Elevation turret Elevation dial is a tactical type. Windage dial is a normal(capped) type. *6-level illumination module is a standard specification for this model.

Reticles

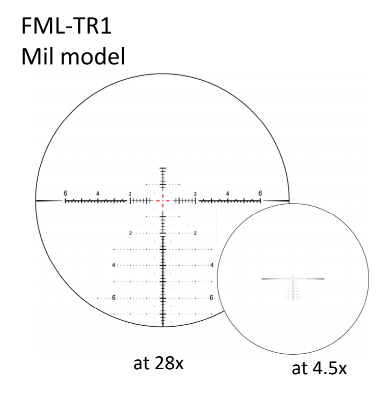

FML-TR1

New competition oriented First Focal Plane reticle is designed for precise holdover without obscuring the sight picture. Center dot and cross are illuminated with .2 mrad and .5 mrad hash marks throughout. The four dots around the center provide small visual references for quick shot corrections. They are located 0.5 mrad away from the center both vertically and horizontally. If you misread distance and/or wind slightly and you are shooting under time pressure and have to hold off with the reticle slightly, it is nice to have an offset reference rather than just a bunch of open space. It also provides an immediate reference point if you need to figure out how far off you are based on the bullet impact.

× CLOSE

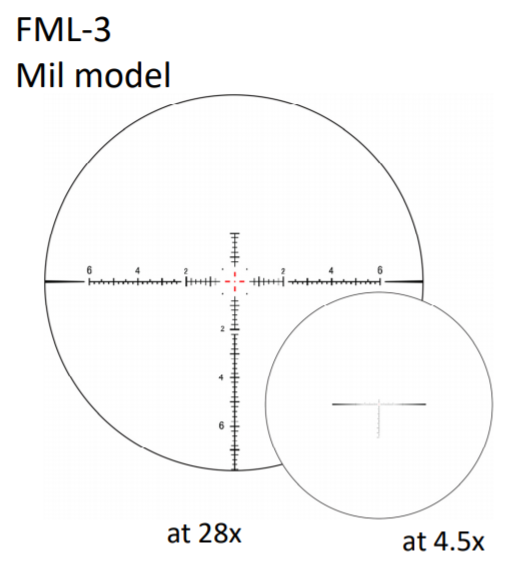

FML-3

New competition oriented First Focal Plane reticle is designed for precise holdover without obscuring the sight picture. Center dot and cross are illuminated with .2 mrad and .5 mrad hash marks throughout. The four dots around the center provide small visual references for quick shot corrections. They are located 0.5 mrad away from the center both vertically and horizontally. If you misread distance and/or wind slightly and you are shooting under time pressure and have to hold off with the reticle slightly, it is nice to have an offset reference rather than just a bunch of open space. It also provides an immediate reference point if you need to figure out how far off you are based on the bullet impact.

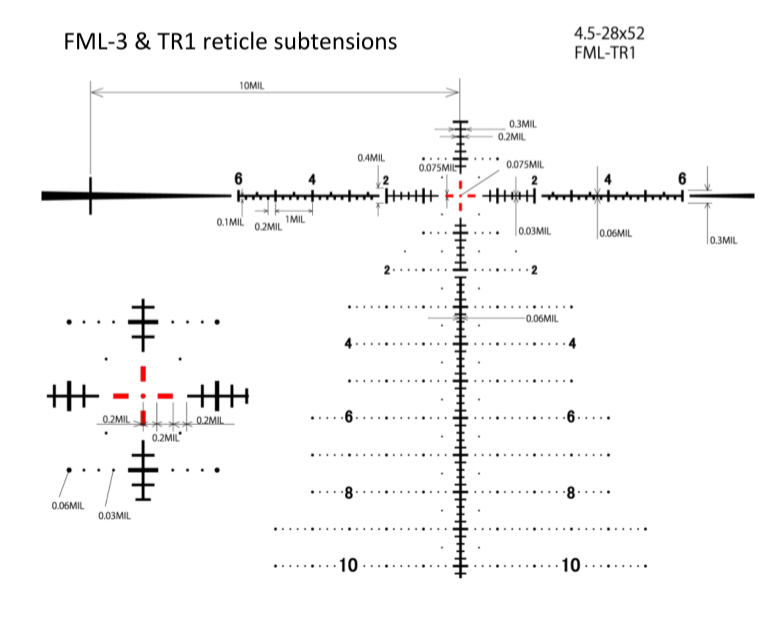

Subtension is the same as FML-TR1 but without the tree part.

× CLOSE

Technical Data

		Low	High
Magnification		4.5x	28x
Effective Lens Diameter		52mm
Body Tube Diameter		34mm
Exit Pupil			1.86mm (0.73 inch)
Field of View (real)	degree	5.56°	0.892°
	ft/100yd	29.1ft	4.68ft
	m/100m	9.7m	1.56m
Eye Relief		70‐93.7mm	72‐90mm
1 Click Adjustment		0.1MIL
Elevation Travel		30MIL
Windage Travel		20MIL
Focus Distance		10yd - infinity
Reticle		FML‐TR1 FML‐3
In the box		Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth MD disk Middle focus wheel Engraved Large dial Fast lever Battery (CR2032) Hex key
Scope Size	A	318mm (12.5inch)
	B	129mm (5.0inch)
	C	60mm (2.4inch)
	D	46mm (1.8inch)
	E	93mm (3.7inch)
	F	96mm (3.8inch)
	G	42mm (1.6inch）
	H	49mm (1.9inch)
Weight		845g (29.8oz)
