These compact scopes are able to encompass the performance of two or three zoom scopes in one. These scopes provide the highest magnification ratio in any rifle scope.
March Compact
- 1.5x-15x42mm
- D15V42IML
- D15V42TIML
- D15V42TI
- 1x-10x24mm
- D10V24TIML
- D10V24TML
- D10V24TI
- D10V24TM
- D10V24T
- D10V24M
- D10V24
- 1x-4.5x24mm
- D4.5V24TM (Non illuminated)
- 1x-4x24mm
- D4V24IML
- 2.5x-25x42mm
- D25V42TIML
- D25V42TML
- D25V42TI
- D25V42TM
- D25V42T
- D25V42M
- D25V42
- 2.5x-25x52mm
- D25V52TML
- D25V52TIML
- D25V52TI
- D25V52TM
- D25V52T

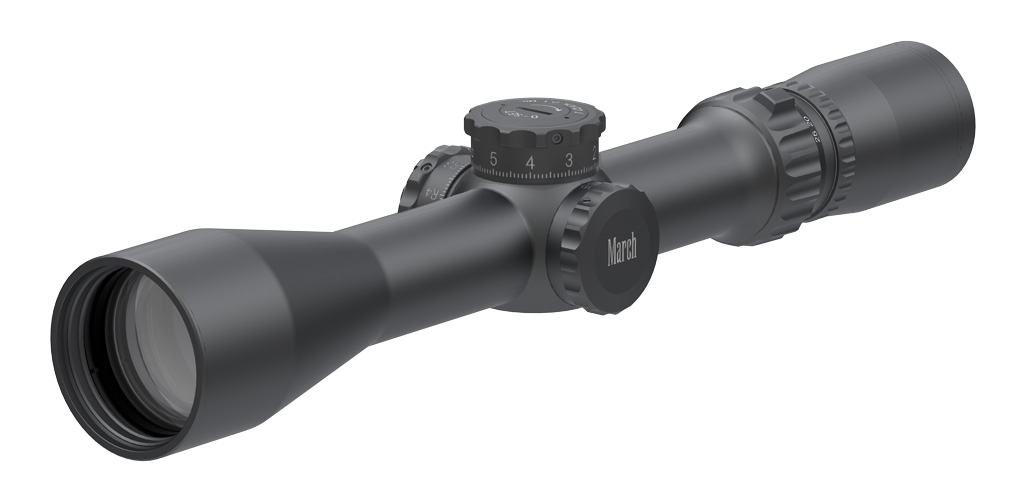

D25V52TML
Tactical Model (Non illuminated)
Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.
This scope has the 52mm objective lens, but it is compact.
By utilizing the 52mm objective lens, it is quite useful in the dusk.
Covers extended wide range of tactical and hunting situation.

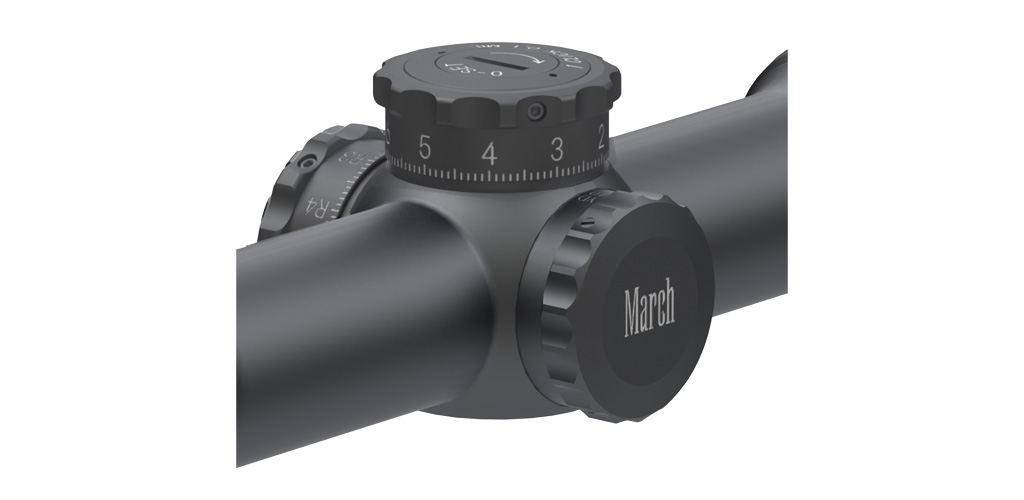

Dials
-
-
MIL Type
One turn of both adjustment dials is 10MIL and one click is 0.1MIL.
Elevation axis has a total adjustment range of 34MIL.
Windage axis has a total adjustment range of 17MIL.
0.1MIL Adj.dials with 0-Set
Reticles
-

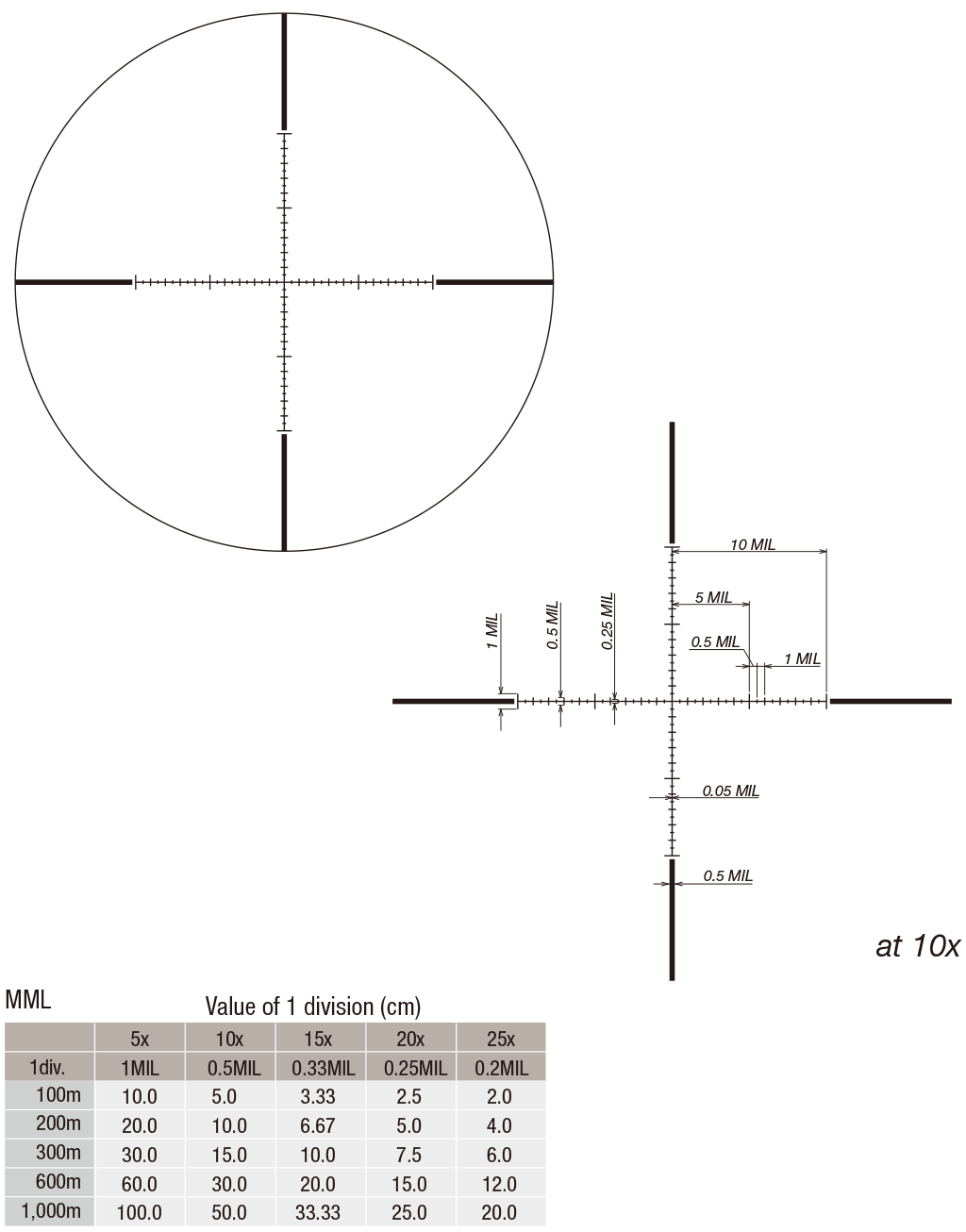

MML
Millradian reticle with the central crosshair and the heavy posts.
Vertical and horizontal hash marks placed in 0.5MIL (at 10x) increments.
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 2.5x | 25x | |
| Effective Lens Diameter | 52mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | -- |
2.08mm (0.08inch) |
|
| Field of View (real) | degree | 8.0° | 0.8° |
| ft/100yd | 42.0ft | 4.2ft | |
| m/100m | 13.99m | 1.40m | |
| Eye Relief | 85-100mm (3.35-3.94inch) |
89-96mm (3.5-3.78inch) |
|
| 1 Click Adjustment | 0.1MIL | ||
| Elevation Travel | 34MIL | ||
| Windage Travel | 17MIL | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | MML | ||
| In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk |
||
| Scope Size | A | 338mm (13.31inch) | |
|
B | 139mm (5.47inch) | |
| C | 60mm (2.36inch) | ||
| D | 41mm (1.61inch) | ||
| E | 105mm (4.13inch) | ||
| F | 94mm (3.7inch) | ||
| G | 53mm (2.09inch) | ||
| H | 48mm (1.89inch) | ||
| Weight | 655g (23.10oz) | ||
