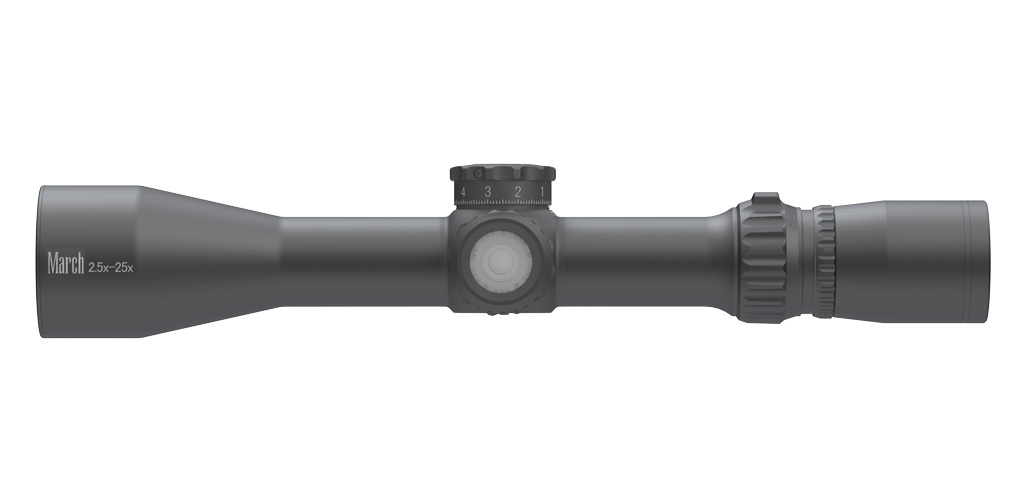

D25V52TIML

These compact scopes are able to encompass the performance of two or three zoom scopes in one. These scopes provide the highest magnification ratio in any rifle scope.

March Compact

Tactical Model (Illuminated)

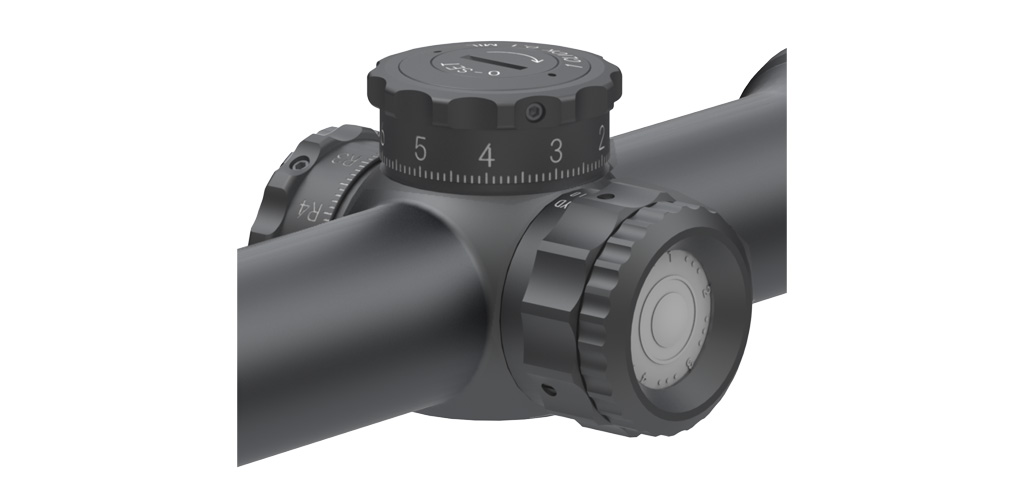

The standard and low illumination switch modules are available. Both modules provide four levels of the reticle glow (red) intensity, which can be cycled through by pressing the switch repeatedly. Both modules can be interchanged.
This function is very effective in the dusk or when aiming at a dark target.

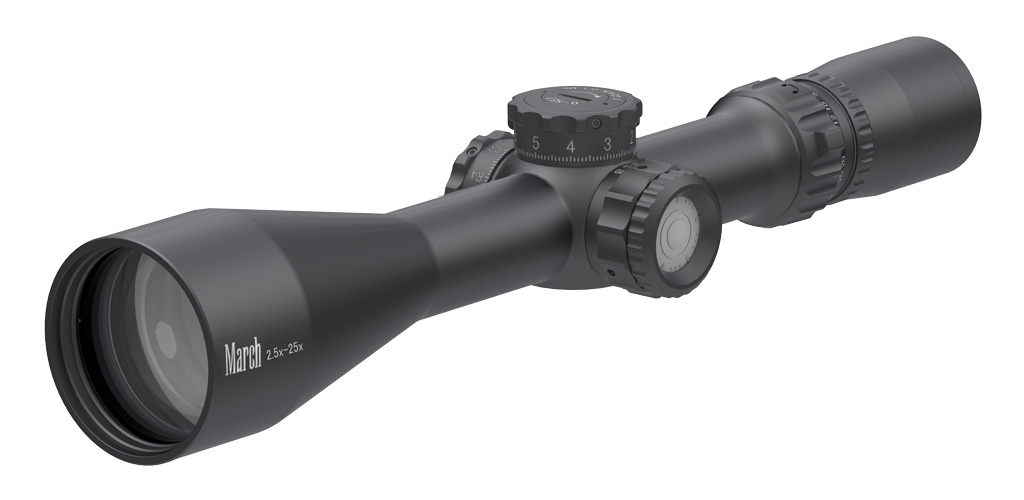

This scope has the 52mm objective lens, but it is compact.
By utilizing the 52mm objective lens, it is quite useful in the dusk.
Covers extended wide range of tactical and hunting situation.

Dials

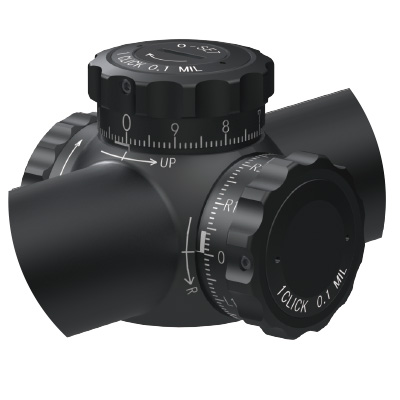

MIL Type One turn of both adjustment dials is 10MIL and one click is 0.1MIL. Elevation axis has a total adjustment range of 34MIL. Windage axis has a total adjustment range of 17MIL. 0.1MIL Adj.dials with 0-Set

Reticles

MML

Millradian reticle with the central crosshair and the heavy posts.
Vertical and horizontal hash marks placed in 0.5MIL (at 10x) increments.

× CLOSE
FD-1

Flash-Dot Reticle

× CLOSE
FD-2

Flash-Dot Reticle

× CLOSE

Technical Data

		Low	High
Magnification		2.5x	25x
Effective Lens Diameter		52mm
Body Tube Diameter		30mm
Exit Pupil		--	2.08mm (0.08inch)
Field of View (real)	degree	8.0°	0.8°
	ft/100yd	42.0ft	4.2ft
	m/100m	13.99m	1.40m
Eye Relief		85-100mm (3.35-3.94inch)	89-96mm (3.5-3.78inch)
1 Click Adjustment		0.1MIL
Elevation Travel		34MIL
Windage Travel		17MIL
Focus Distance		10yd - infinity
Reticle		MML FD-1 FD-2
In the box		Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk
Scope Size	A	338mm (13.31inch)
	B	139mm (5.47inch)
	C	60mm (2.36inch)
	D	41mm (1.61inch)
	E	105mm (4.13inch)
	F	94mm (3.7inch)
	G	53mm (2.09inch)
	H	48mm (1.89inch)
Weight		685g (24.16oz)
