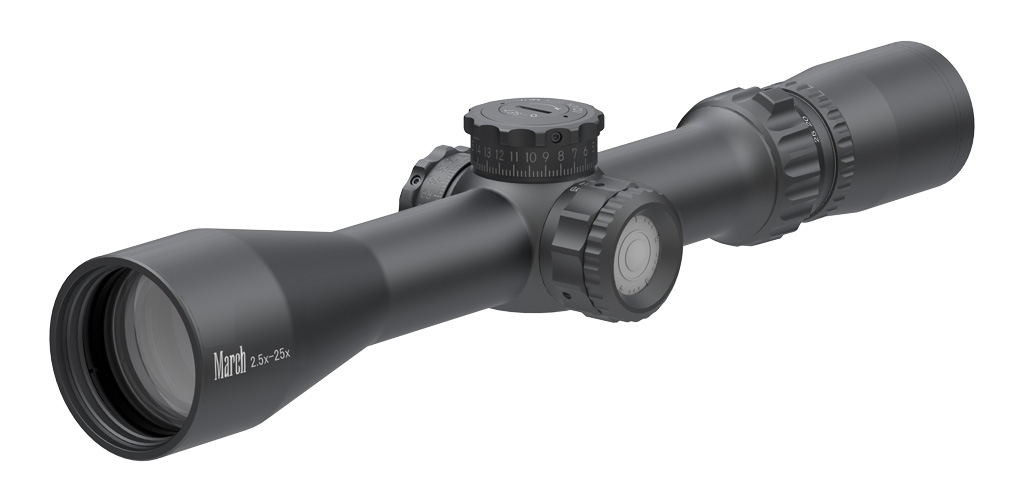

D25V42TI
Tactical Model (Illuminated)
The standard and low illumination switch modules are available. Both modules provide four levels of the reticle glow (red) intensity, which can be cycled through by pressing the switch repeatedly. Both modules can be interchanged.
This function is very effective in the dusk or when aiming at a dark target.
This scope has the 42mm objective lens, but it is compact.
Covers extended wide range of tactical and hunting situation.

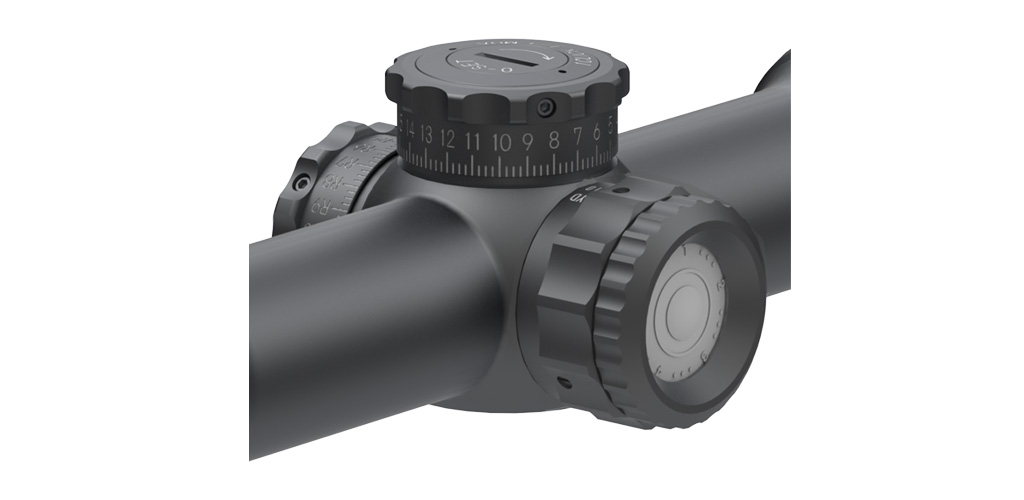

Dials
-
-
MOA Type
One turn of both adjustment dials is 25MOA and one click is 1/4MOA.
Elevation and windage axes each has a total adjustment range of 100MOA.
1/4MOA Adj.dials with 0-Set
Reticles
-
MTR-1
at 10x
0.08 MOA vertical and horizontal lines with hash marks placed in 4 MOA increments.
These hash marks are placed till 40 MOA at relative position (up and down, left and right).
-
MTR-2
at 10x
0.08 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20 MOA to 40 MOA hash marks are placed in 10 MOA increments till 40MOA on the right side and on the left, till 20 MOA downward.
0.25MOA floating center dot.
-
MTR-3
at 10x
0.16 MOA vertical and horizontal lines with hash marks placed in 4 MOA increments.
These hash marks are placed till 40 MOA at relative position (up and down, left and right).
From 40 MOA onwards thick 2MOA posts.
-
MTR-4
at 10x
0.16 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20MOA to 40MOA hash marks are placed in 10MOA increments.
Thick 2MOA posts are placed from 40 MOA onwards on right and left sides.
Thick 2MOA posts are placed from 20 MOA downwards.
0.5 MOA floating center dot inside the 4 MOA center circle.
-
MTR-5
at 10x
0.2 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
From 20MOA to 40MOA hash marks are placed in 10MOA increments till 40MOA on the right side and on the left, till 20 MOA downward.
Red illuminated 0.5 MOA floating center dot.
(Only the dot is illuminated red and nothing else would be illuminated )
-
MTR-FT
at10x
MTR-FT is designed for a field target competition.
Vertical and horizontal hashmarks correlate to the aim point in field target competition.
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 2.5x | 25x | |
| Effective Lens Diameter | 42mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | -- |
1.68mm (0.07inch) |
|
| Field of View (real) | degree | 8.0° | 0.8° |
| ft/100yd | 42.0ft | 4.2ft | |
| m/100m | 13.99m | 1.40m | |
| Eye Relief | 85-100mm (3.35-3.94inch) |
89-96mm (3.5-3.78inch) |
|
| 1 Click Adjustment | 1/4MOA | ||
| Elevation Travel | 100MOA | ||
| Windage Travel | 100MOA | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | MTR-1 MTR-2 MTR-3 MTR-4 MTR-5 MTR-FT MTR-RTM |
||
| In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk |
||

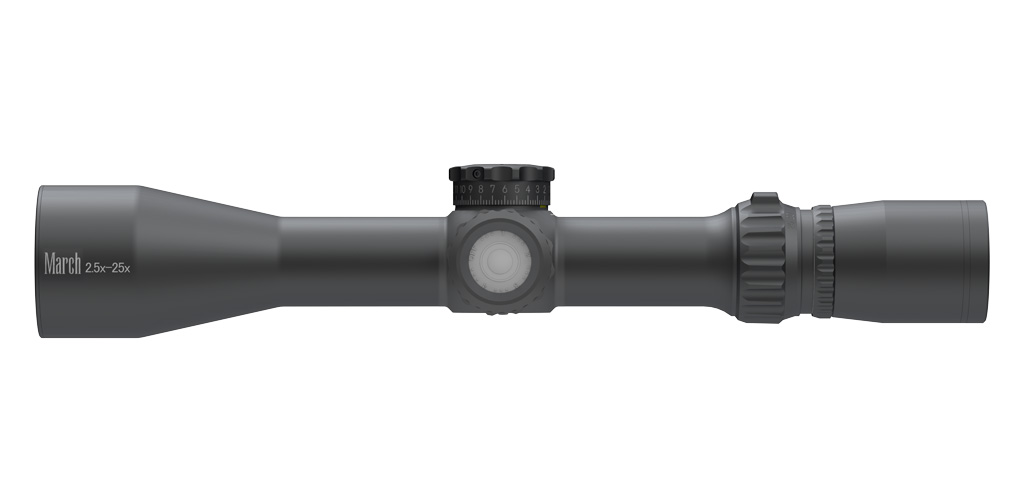

| Scope Size | A | 314mm (12.36inch) | |
|
B | 139mm (5.47inch) | |
| C | 51mm (2.01inch) | ||
| D | 41mm (1.61inch) | ||
| E | 81mm (3.19inch) | ||
| F | 94mm (3.7inch) | ||
| G | 53mm (2.09inch) | ||
| H | 48mm (1.89inch) | ||
| Weight | 625g (22.05oz) | ||
