These compact scopes are able to encompass the performance of two or three zoom scopes in one. These scopes provide the highest magnification ratio in any rifle scope.
March Compact
- 1.5x-15x42mm
- D15V42IML
- D15V42TIML
- D15V42TI
- 1x-10x24mm
- D10V24TIML
- D10V24TML
- D10V24TI
- D10V24TM
- D10V24T
- D10V24M
- D10V24
- 1x-4.5x24mm
- D4.5V24TM (Non illuminated)
- 1x-4x24mm
- D4V24IML
- 2.5x-25x42mm
- D25V42TIML
- D25V42TML
- D25V42TI
- D25V42TM
- D25V42T
- D25V42M
- D25V42
- 2.5x-25x52mm
- D25V52TML
- D25V52TIML
- D25V52TI
- D25V52TM
- D25V52T

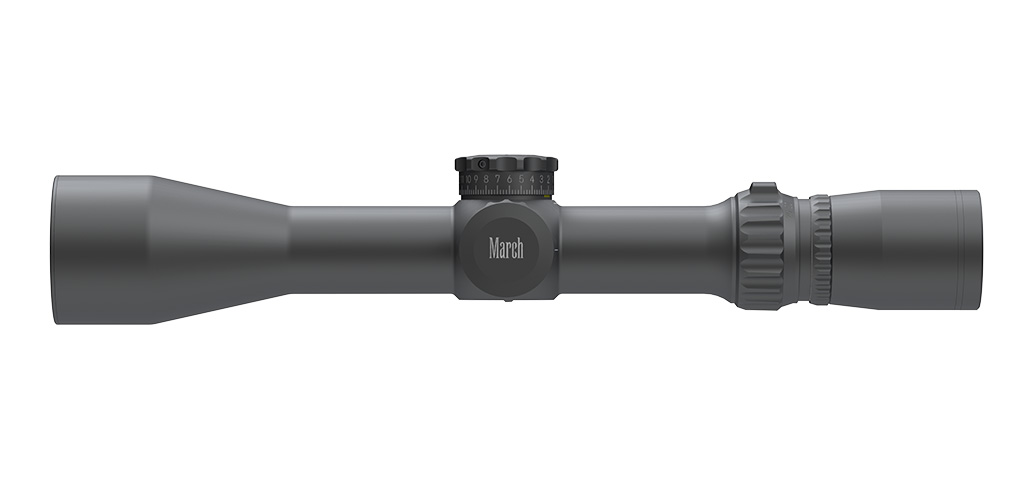

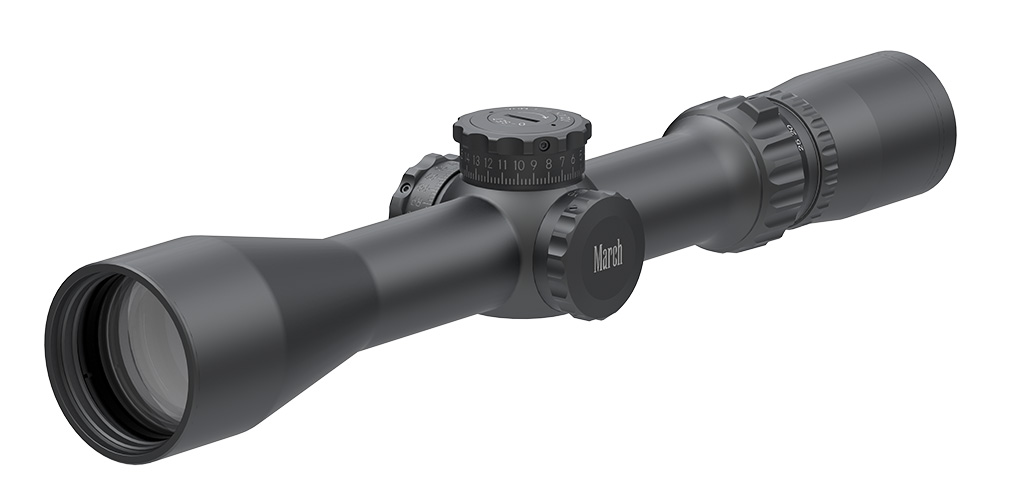

D25V42T
Tactical Model (Non illuminated)
Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.
This scope has the 42mm objective lens, but it is compact.
Covers extended wide range of tactical and hunting situation.

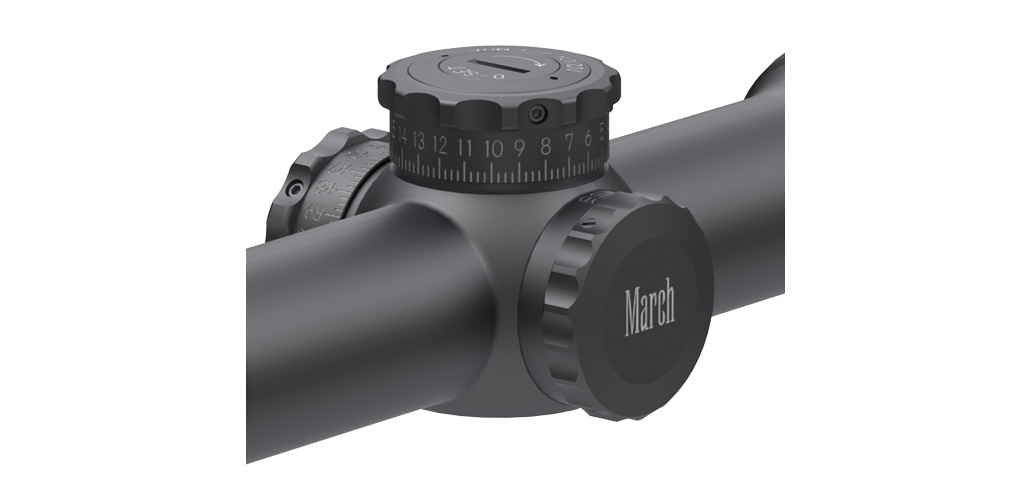

Dials
-
-
MOA Type
One turn of both adjustment dials is 25MOA and one click is 1/4MOA.
Elevation and windage axes each has a total adjustment range of 100MOA.
1/4MOA Adj.dials with 0-Set
Reticles
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 2.5x | 25x | |
| Effective Lens Diameter | 42mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | -- |
1.68mm (0.07inch) |
|
| Field of View (real) | degree | 8.0° | 0.8° |
| ft/100yd | 42.0ft | 4.2ft | |
| m/100m | 13.99m | 1.40m | |
| Eye Relief | 85-100mm (3.35-3.94inch) |
89-96mm (3.5-3.78inch) |
|
| 1 Click Adjustment | 1/4MOA | ||
| Elevation Travel | 100MOA | ||
| Windage Travel | 100MOA | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | CH 1/4dot Di-plex |
||
| In the box | Flip Caps (Objective and Eyepiece) Lens Cloth Sunshade Fast Lever Hex wrench MD disk |
||
| Scope Size | A | 312mm (12.28inch) | |
|
B | 139mm (5.47inch) | |
| C | 51mm (2.01inch) | ||
| D | 41mm (1.61inch) | ||
| E | 81mm (3.19inch) | ||
| F | 92mm (3.62inch) | ||
| G | 53mm (2.09inch) | ||
| H | 48mm (1.89inch) | ||
| Weight | 595g (20.99oz) | ||
