Has eight magnification ratios, in the first focal plane (FFP) configuration rifle scope. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration.
March-F
- 1x-10x24mm Shorty
- D10SV24FIMLN-P
- D10SV24FIMLN
- D10SV24FIML-P
- D10SV24FIML
- 1x-8x24mm
- D8V24FML
- D8V24FIML
- 1x-8x24mm Shorty
- D8SV24FIML
- 3x-24x42mm
- D24V42FIMA
- D24V42FMA
- D24V42FIML
- D24V42FML
- 3x-24x52mm
- D24V52FIMA
- D24V52FMA
- D24V52FIML
- D24V52FML

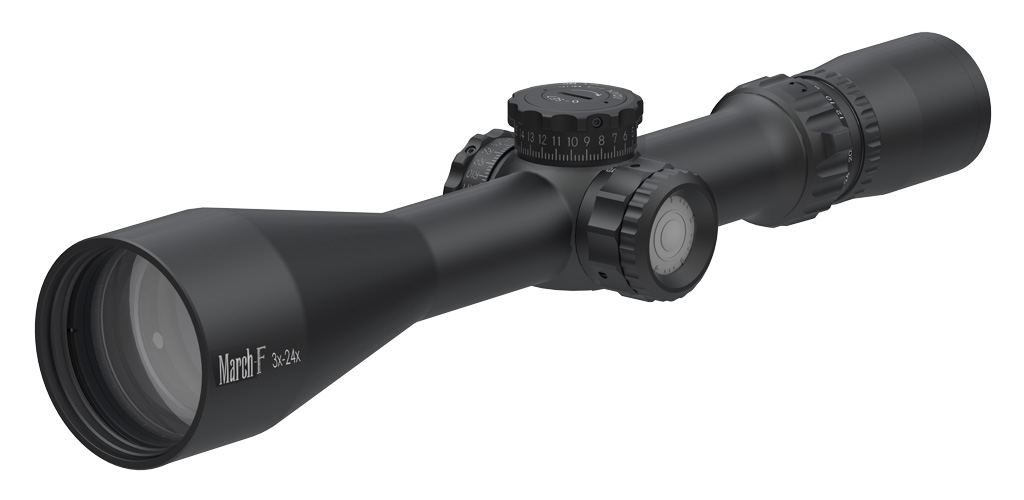

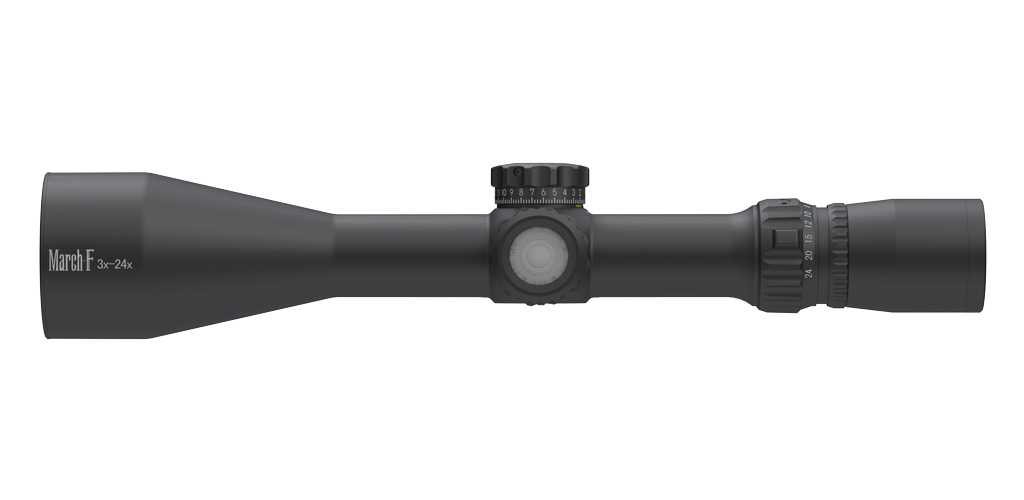

D24V52FIMA
Tactical Model with Illumination Module
The standard and low illumination switch modules are available. Both modules provide four levels of the reticle glow (red) intensity, which can be cycled through by pressing the switch repeatedly. Both modules can be interchanged.
This function is very effective in the dusk or when aiming at a dark target.
First Focal Plane Reticle Scope (FFP)
A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the reticle scale will get thicker when magnification is increased. The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.Dials
-
-
1/4 MOA Type
One turn of both adjustment dials is 25MOA and one click value is 1/4MOA.
Reticle: FMA-1
1/4MOA Adj.dials with 0-Set
Reticles
-
FMA-1
1/4 MOA floating center dot and 0.2 MOA crosshairs with vertical and horizontal hashes.
These hashes are placed in 1 MOA increment.
Illuminated model only.
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 3x | 24x | |
| Effective Lens Diameter | 52mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | -- |
2.17mm (0.09inch) |
|
| Field of View (real) | degree | 6.67° | 0.83° |
| ft/100yd | 35.0ft | 4.3ft | |
| m/100m | 11.66m | 1.45m | |
| Eye Relief | 85-100mm (3.35-3.94inch) |
89-96mm (3.5-3.78inch) |
|
| 1 Click Adjustment | 1/4MOA | ||
| Elevation Travel | 120MOA | ||
| Windage Travel | 60MOA | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | FMA-1 | ||
| In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk (for orders received from Jan 2022) |
||
| Scope Size | A | 336mm (13.23inch) | |
|
B | 139mm (5.47inch) | |
| C | 60mm (2.36inch) | ||
| D | 41mm (1.61inch) | ||
| E | 105mm (4.13inch) | ||
| F | 92mm (3.62inch) | ||
| G | 53mm (2.09inch) | ||
| H | 48mm (1.89inch) | ||
| Weight | 695g (24.52oz) | ||
