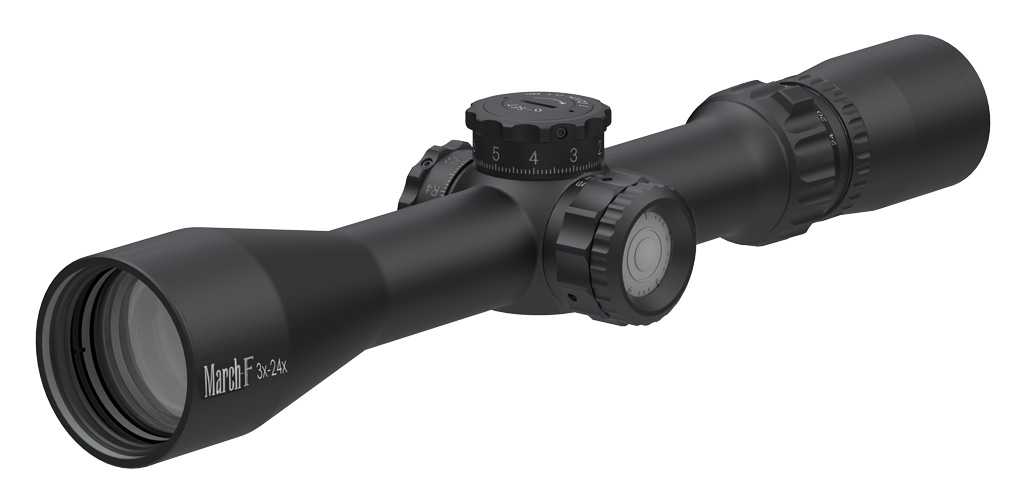

D24V42FIML
Tactical Model with Illumination Module
The standard and low illumination switch modules are available. Both modules provide four levels of the reticle glow (red) intensity, which can be cycled through by pressing the switch repeatedly. Both modules can be interchanged.
This function is very effective in the dusk or when aiming at a dark target.
First Focal Plane Reticle Scope (FFP)
A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the reticle scale will get thicker when magnification is increased. The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.Dials
-
-

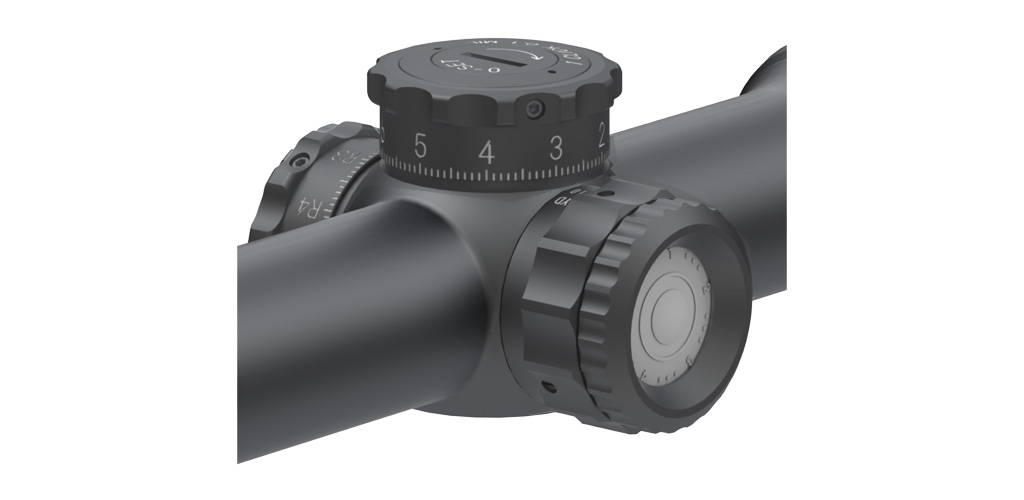

0.1 MIL Type
1 click adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
0-set on Elevation turret
Reticles
-
FML
0.1 MIL floating center dot and 0.07 MIL crosshairs with vertical and horizontal hashes.
These hashes are placed in 0.5 MIL increment.
-
FML-1
0.1 MIL floating center dot and 0.07 MIL crosshairs with vertical and horizontal hashes. These hashes are placed in 0.5 MIL increment.
If you choose a non-illuminated model, this reticle will have a 0.1 MIL floating center dot and 0.03 MIL crosshairs.
-
-
-
FML-TR1H
This reticle is specially designed for hunters. Quadrant in the center will assist you with quick aiming. 0.1 MIL floating center dot and 0.07 MIL crosshairs with vertical and horizontal hashes.
Technical Data
| Low | High | ||
|---|---|---|---|
| Magnification | 3x | 24x | |
| Effective Lens Diameter | 42mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | -- |
1.75mm (0.07inch) |
|
| Field of View (real) | degree | 6.67° | 0.83° |
| ft/100yd | 35.0ft | 4.3ft | |
| m/100m | 11.66m | 1.45m | |
| Eye Relief | 85-100mm (3.35-3.94inch) |
89-96mm (3.5-3.78inch) |
|
| 1 Click Adjustment | 0.1MIL | ||
| Elevation Travel | 28MIL | ||
| Windage Travel | 28MIL | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | FML FML-1 FML-T1 FML-TR1H FML-MB |
||
| In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk (for orders received from Jan 2022) |
||

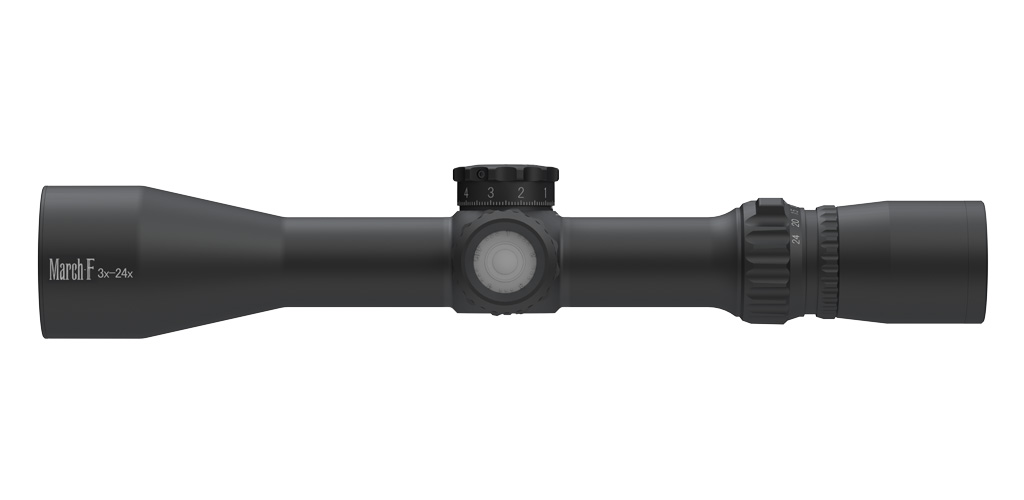

| Scope Size | A | 312mm (12.28inch) | |
|
B | 139mm (5.47inch) | |
| C | 51mm (2.01inch) | ||
| D | 41mm (1.61inch) | ||
| E | 81mm (3.19inch) | ||
| F | 92mm (3.62inch) | ||
| G | 53mm (2.09inch) | ||
| H | 48mm (1.89inch) | ||
| Weight | 640g (22.58oz) | ||
