Scopes

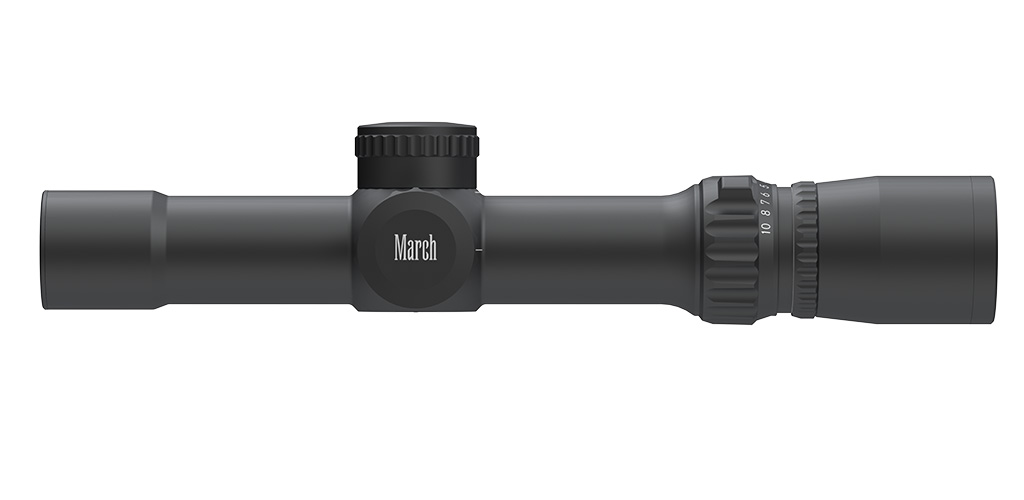

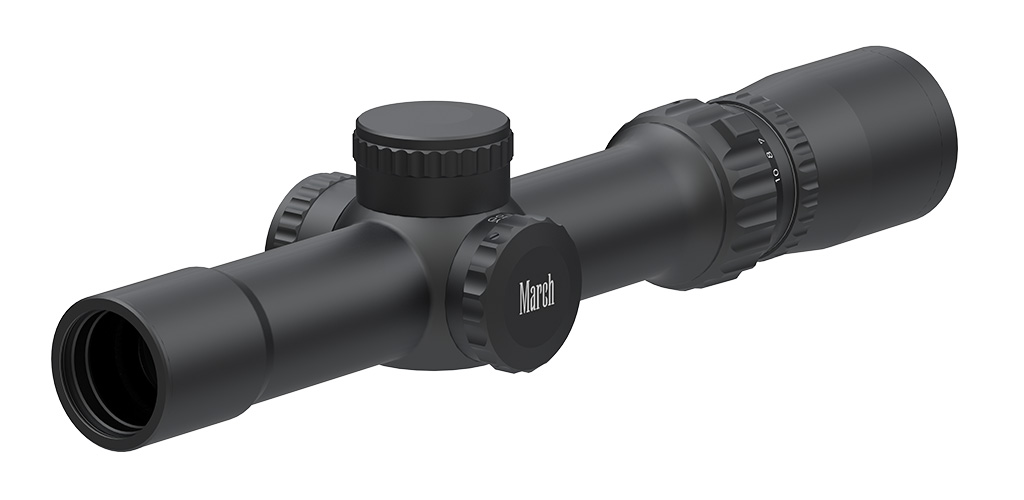

D10V24M

Dials

MOA Type

One turn of both adjustment dials is 25MOA and one click is 1/4MOA.
Elevation and windage axes each has a total adjustment range of 200MOA.

1/4MOA Adj.dials

Reticles

•

  MTR-1

  at 10x
  0.08 MOA vertical and horizontal lines with hash marks placed in 4 MOA increments.
  These hash marks are placed till 40 MOA at relative position (up and down, left and right).



  × CLOSE

•

  MTR-2

  at 10x
  0.08 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
  From 20 MOA to 40 MOA hash marks are placed in 10 MOA increments till 40MOA on the right side and on the left, till 20 MOA downward.
  0.25MOA floating center dot.



  × CLOSE

•

  MTR-3

  at 10x
  0.16 MOA vertical and horizontal lines with hash marks placed in 4 MOA increments.
  These hash marks are placed till 40 MOA at relative position (up and down, left and right).
  From 40 MOA onwards thick 2MOA posts.



  × CLOSE

•

  MTR-4

  at 10x
  0.16 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
  From 20MOA to 40MOA hash marks are placed in 10MOA increments.
  Thick 2MOA posts are placed from 40 MOA onwards on right and left sides.
  Thick 2MOA posts are placed from 20 MOA downwards.
  0.5 MOA floating center dot inside the 4 MOA center circle.



  × CLOSE

•

  MTR-5

  at 10x
  0.2 MOA vertical and horizontal lines with hash marks placed in 2 MOA increments till 20MOA.
  From 20MOA to 40MOA hash marks are placed in 10MOA increments till 40MOA on the right side and on the left, till 20 MOA downward.
  0.5 MOA floating center dot. Also available in illuminated model.



  × CLOSE

Technical Data

		Low	High
Magnification		1x	10x
Effective Lens Diameter		24mm
Body Tube Diameter		30mm
Exit Pupil		--	2.4mm (0.09inch)
Field of View (real)	degree	20.0°	2.0°
	ft/100yd	105.8ft	10.5ft
	m/100m	35.27m	3.49m
Eye Relief		86-98mm (3.39-3.86inch)	86-96mm (3.39-3.78inch)
1 Click Adjustment		1/4MOA
Elevation Travel		200MOA
Windage Travel		200MOA
Focus Distance		10yd - infinity
Reticle		MTR-1 MTR-2 MTR-3 MTR-4 MTR-5
In the box		Flip Caps (Objective and Eyepiece) Lens Cloth Fast Lever Hex wrench
Scope Size	A	264mm (10.39inch)
	B	135mm (5.31inch)
	C	33mm (1.3inch)
	D	41mm (1.61inch)
	E	35mm (1.38inch)
	F	94mm (3.7inch)
	G	49mm (1.93inch)
	H	48mm (1.89inch)
Weight		505g (17.81oz)
